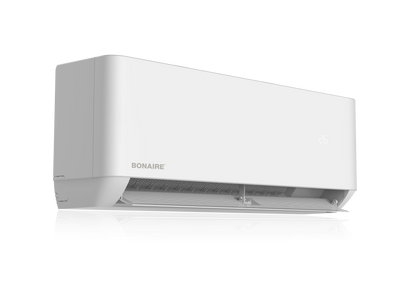

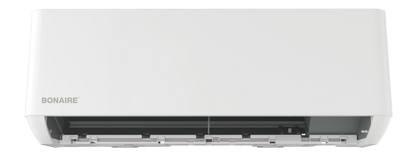

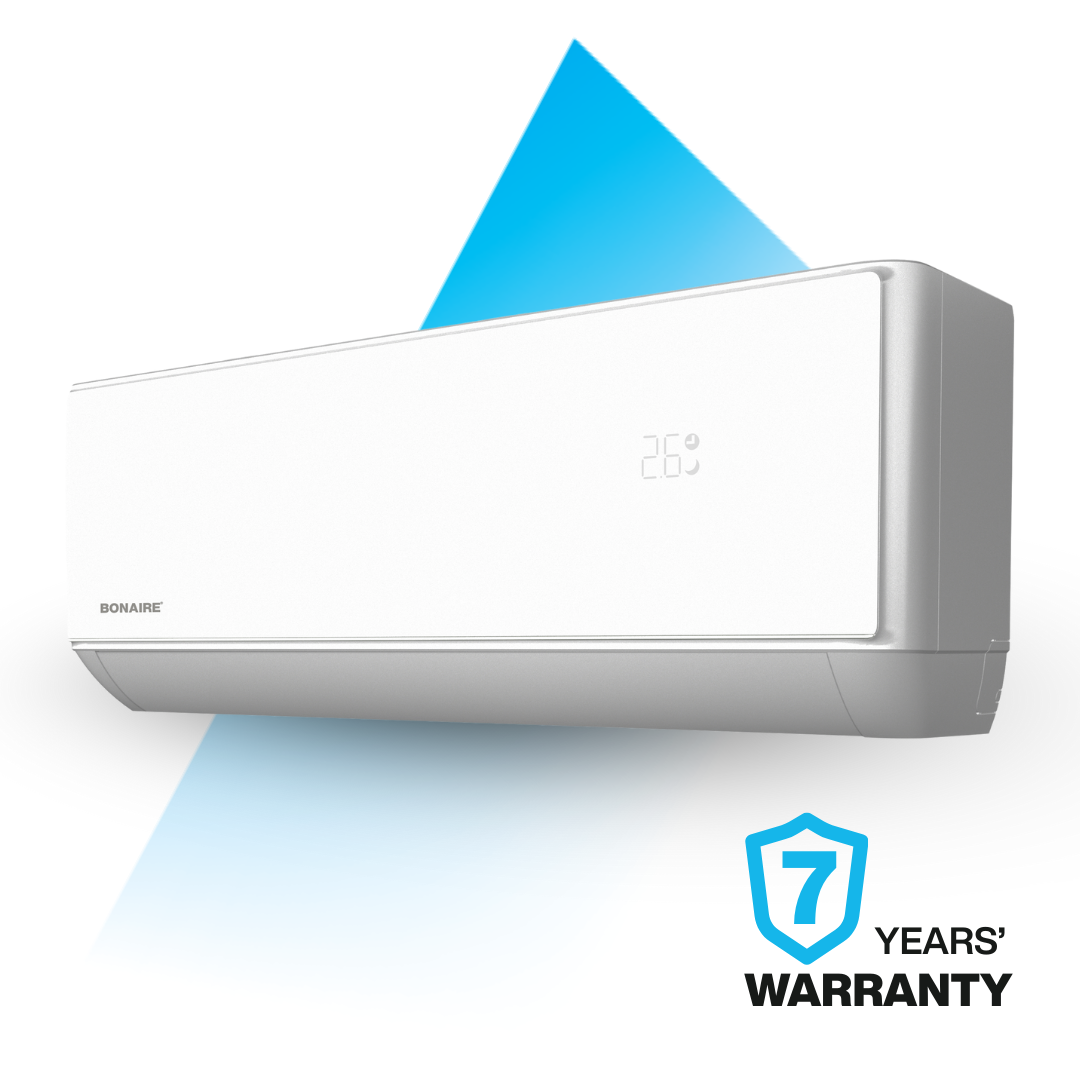

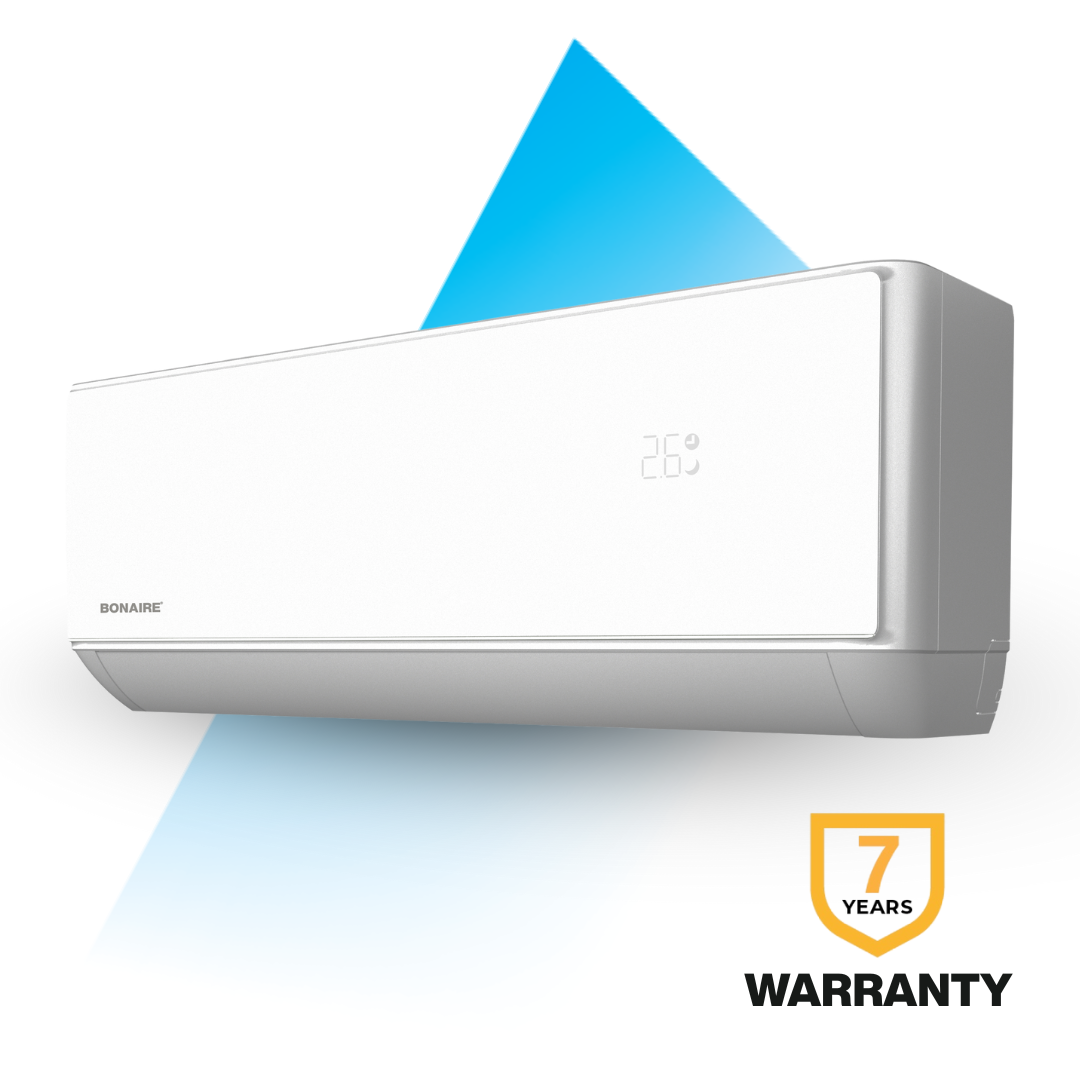

Series 3 Hi-Wall Split System
Eco‑Friendly
Smart Wi-Fi Control
DRED Enabled

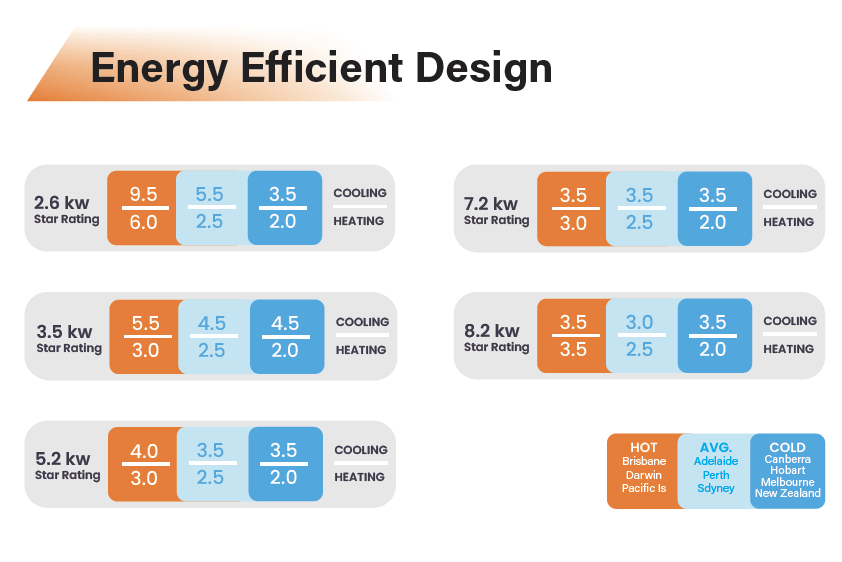

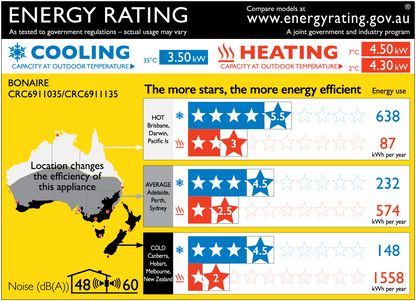

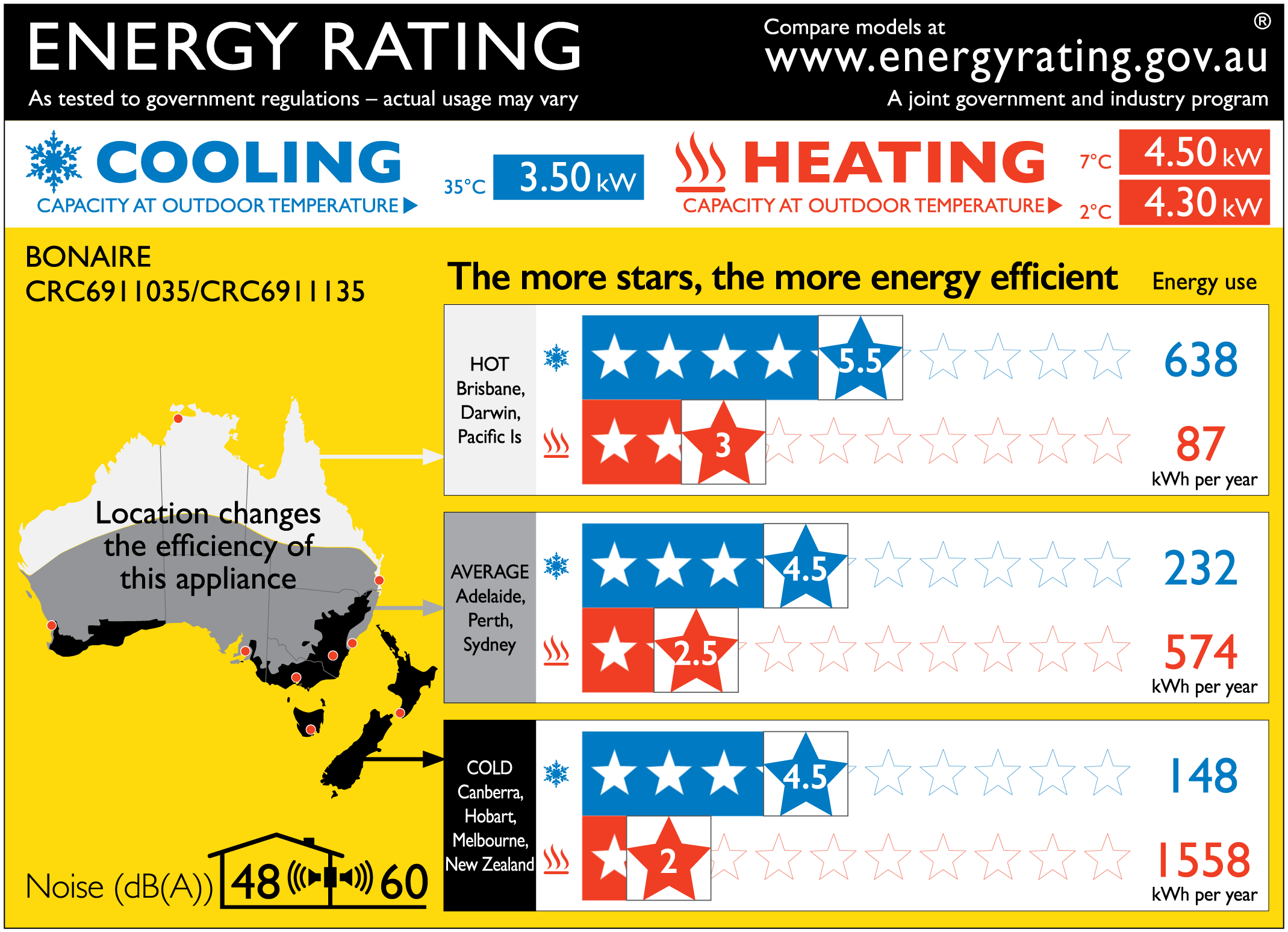

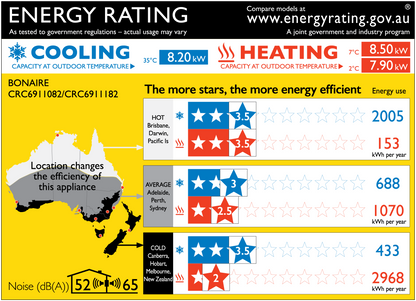

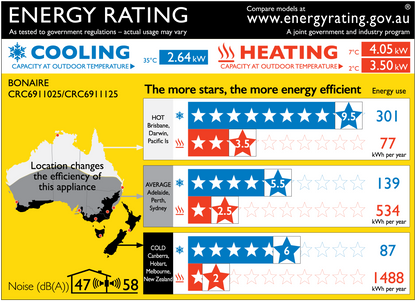

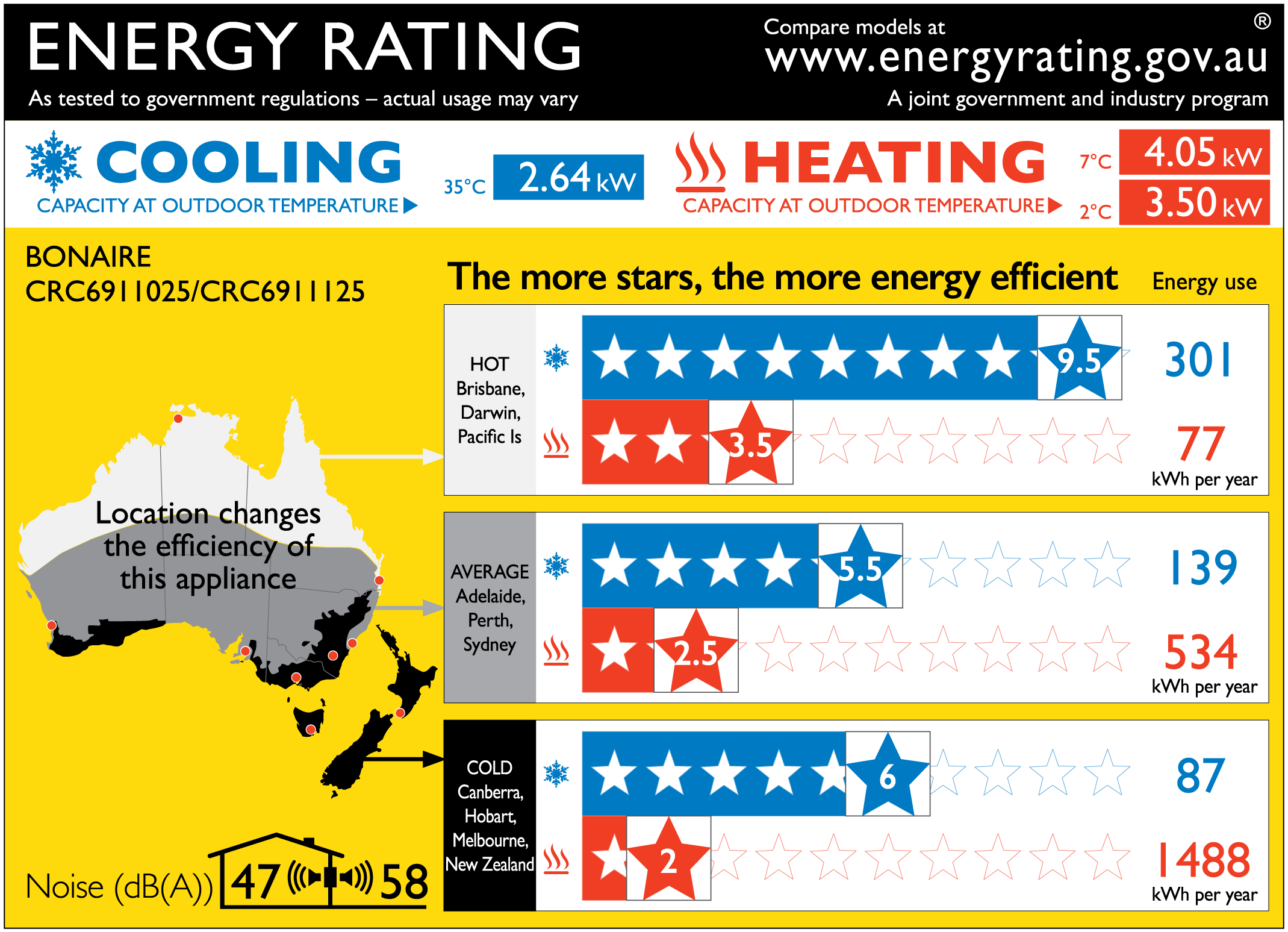

Up to 9.5 Star Energy Efficiency
Industry Leading 7-Year Warranty
Smart Features for Modern Living
Sweltering arvos and frosty mornings aren’t a bother when you can control the temperature from 16°C to 30°C with the Series 3. When the days turn sticky and sultry make your home cool and dry with the dehumidifier mode.
Go on, get really comfy!
Available through Bonaire's extensive network of dealers.
Find a Dealer
Eco‑Friendly
Smart Wi-Fi Control
DRED Enabled
Up to 9.5 Star Energy Efficiency
Industry Leading 7-Year Warranty
Smart Features for Modern Living
Find a Bonaire Dealer Near You
Product Downloads
Product Brochure
Learn about your new Bonaire product, pour over technical details, compare it with other products - all from a handy brochure.
Owner's Manual
Get the most out of your new Bonaire product. Refer to the manual for specific actions and advanced features. Download your copy now!
Installation Manual
Detailed product dimensions and electrical specifications for dealers to to make the installation of your new Bonaire product a breeze.
Technical Details
| Model | 2.6kw | 3.5kw | 5.2kw | 7.2kw | 8.2kw |
| Cooling (kW) | 2.6 (1.0~4.0) | 3.5 (1.0~4.0) | 5.2 (1.2~6.0) | 7.2 (2.0~8.0) | 8.2 (2.0~8.4) |
| Heating (kW) | 4.0 (1.0~4.8) | 4.5 (1.0~4.6) | 5.2 (1.2~6.0) | 7.2 (2.0~8.5) | 8.5 (2.2~8.8) |
| Cooling Input Power (kW) | 0.59 (0.29~1.45) | 0.80 (0.29~1.40) | 1.40 (0.39~2.75) | 1.90 (0.26~2.60) | 2.30 (0.30~3.10) |
| Heating Input Power (kW) | 0.98 (0.29~1.58) | 1.07 (0.29~1.99) | 1.20 (0.32~2.65) | 1.70 (0.28~2.50) | 2.30 (0.30~3.15) |
| Cooling Max Current (A) | 6.6 | 7.8 | 12 | 12 | 14 |
| Heating Max Current (A) | 7.4 | 8.2 | 11.5 | 11.5 | 15 |

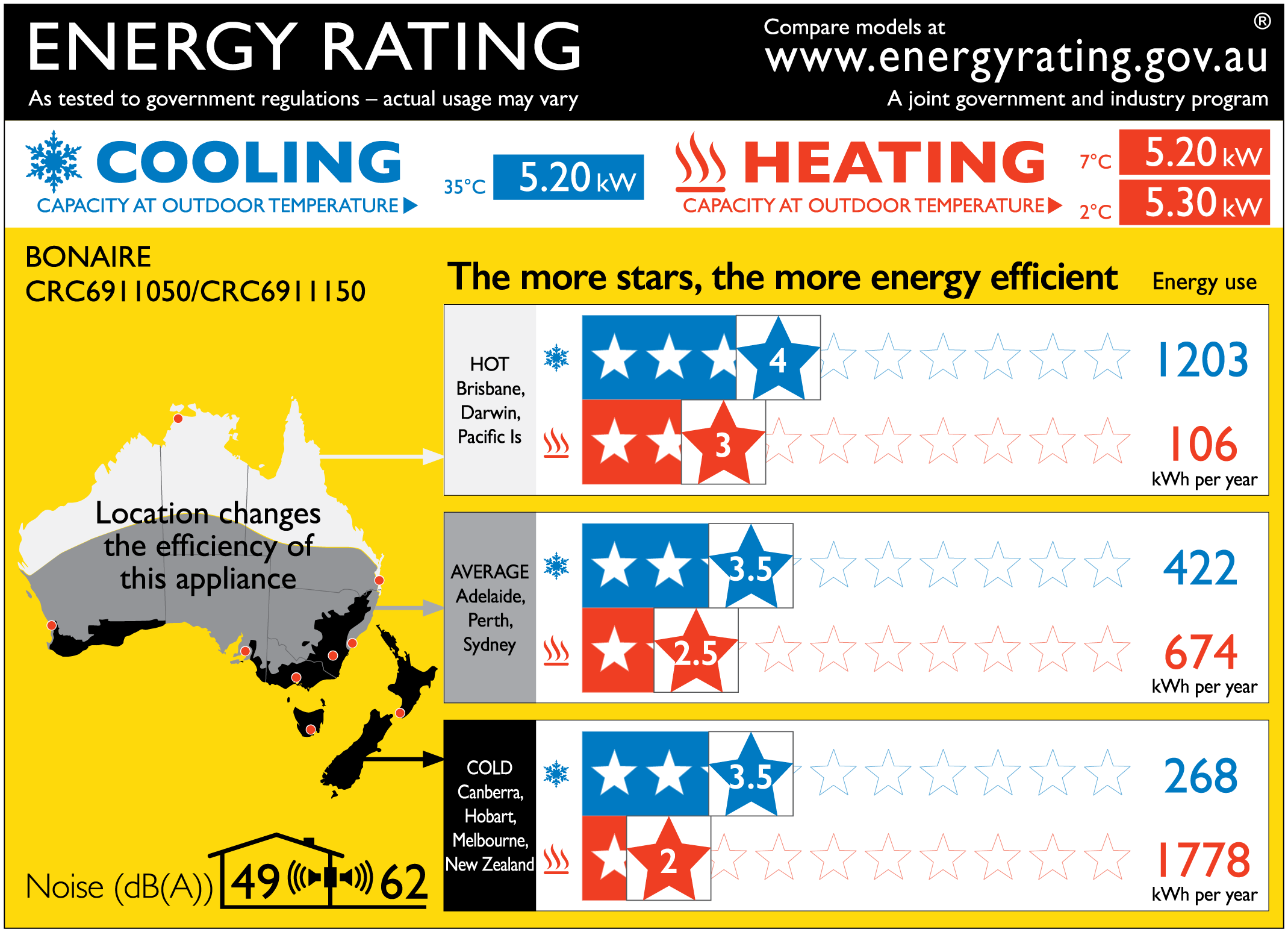

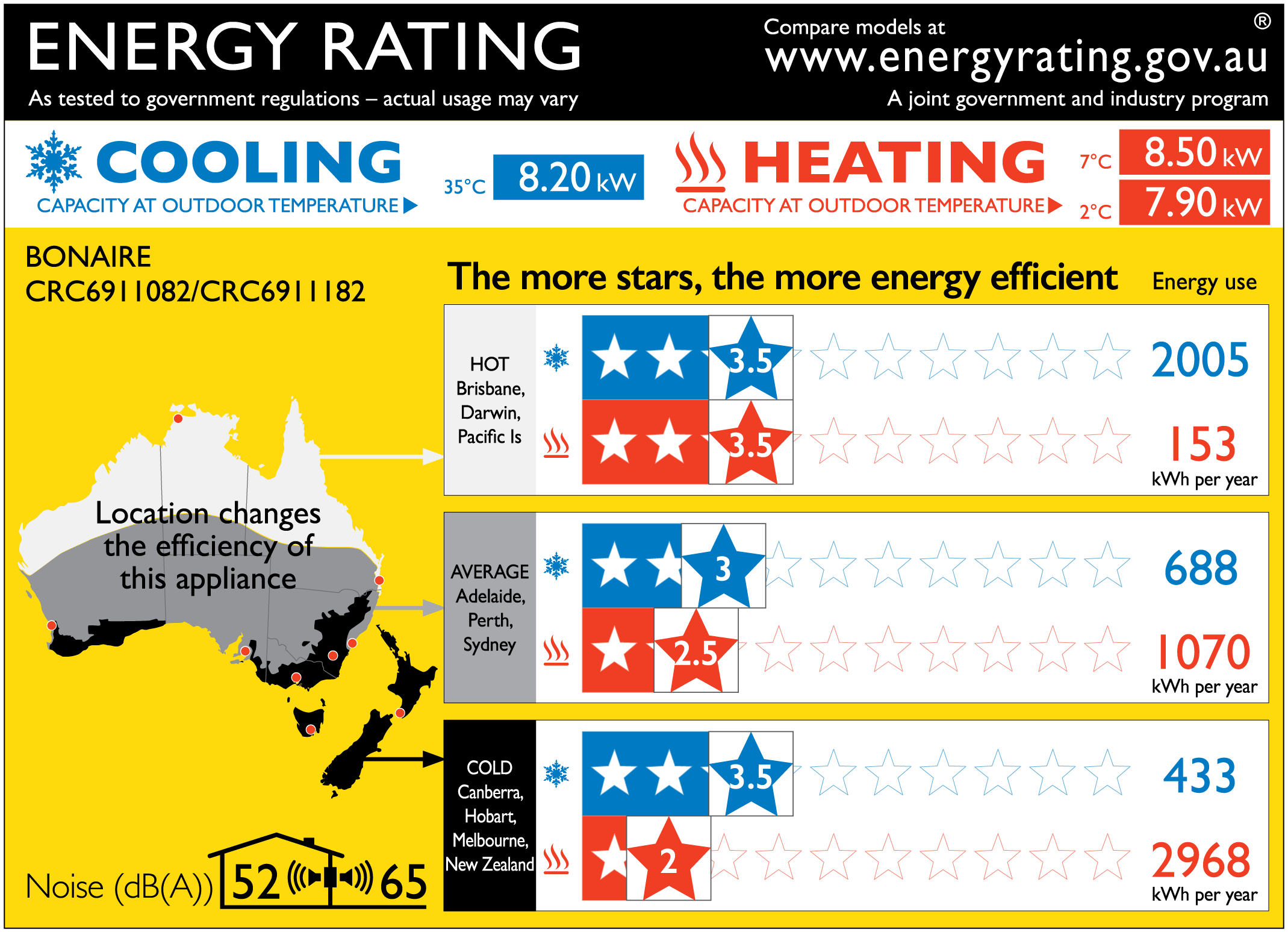

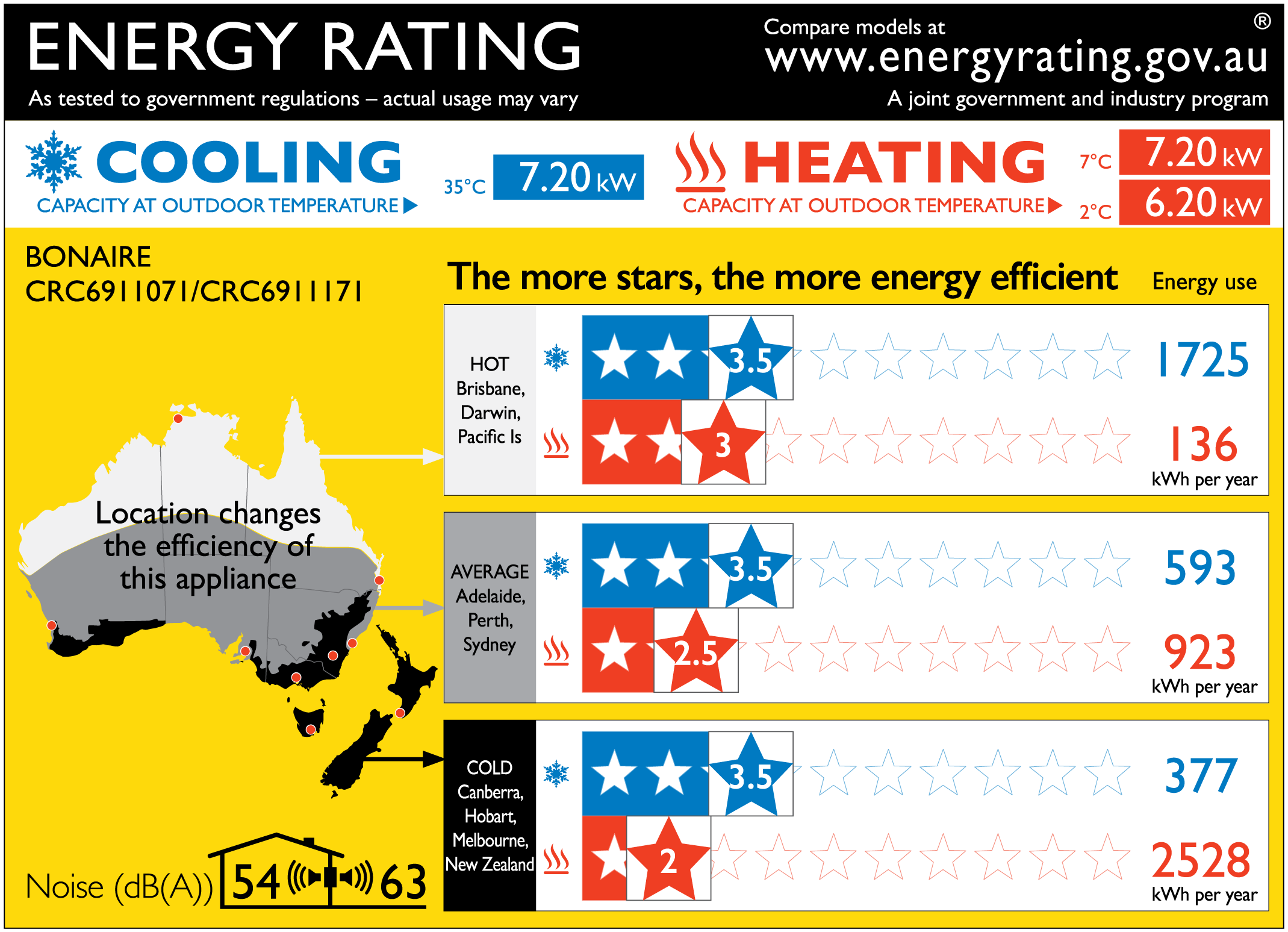

| Annualised Energy Efficiency Ratio | 4.338 | 4.30 | 3.669 | 3.76 | 3.54 |
| Annualised Coefficient of Performance | 4.056 | 4.15 | 4.273 | 4.19 | 3.665 |

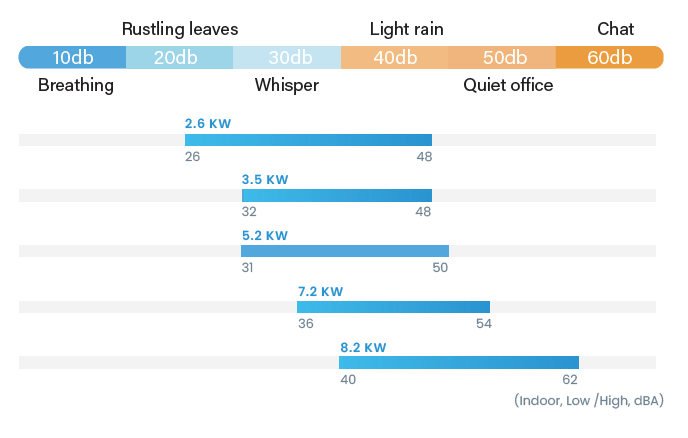

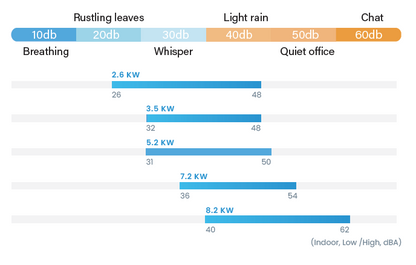

| Indoor Sound Power Level (dBA) | 26–48 | 32–48 | 31–50 | 36–54 | 40–52 |

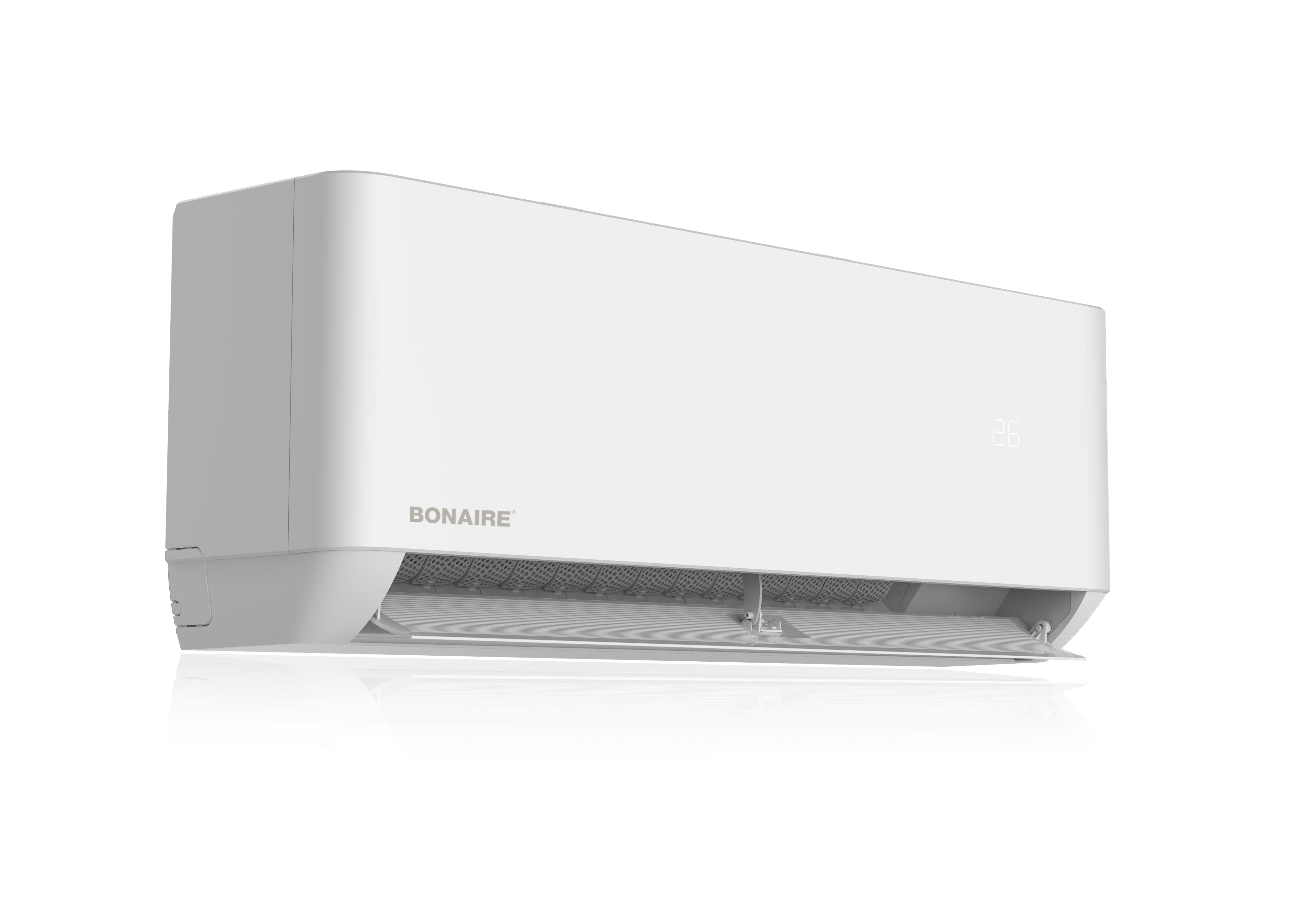

| Indoor Dimensions (WxDxH mm) | 820x195x306 | 820x195x306 | 1097x222x332 | 1097x222x332 | 1097x222x332 |
| Indoor Net/Gross Weight (kg) | 10/12 | 10/12 | 13.5/16.5 | 14/17 | 14/17 |
| Outdoor Sound Power Level (dBA) | 58 | 60 | 63 | 64 | 65 |

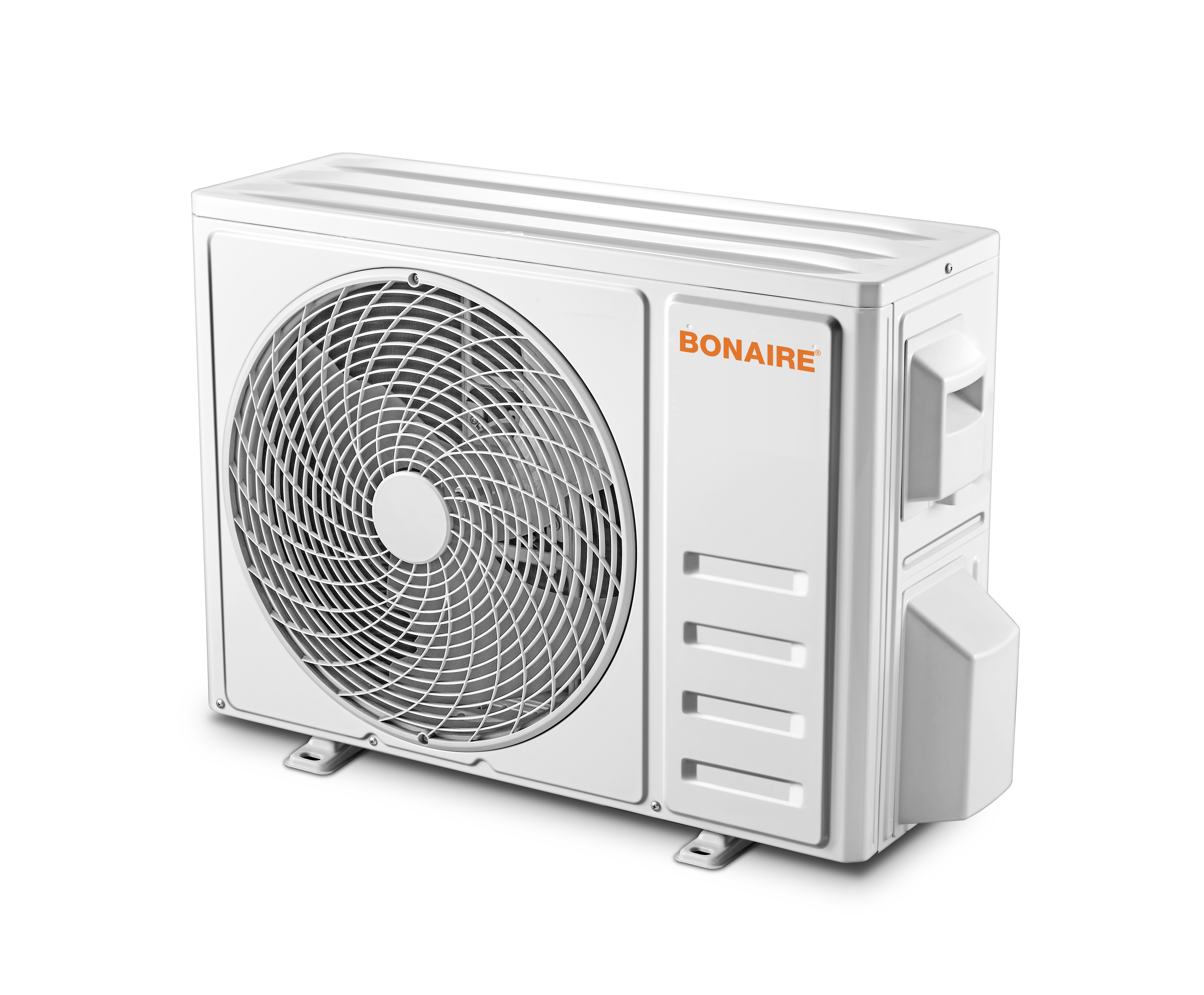

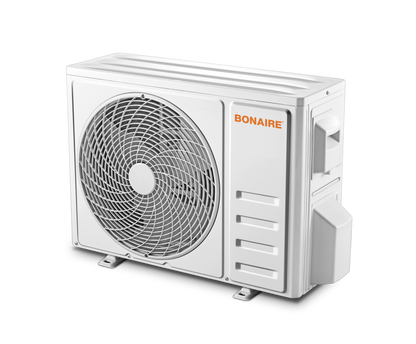

| Outdoor Dimensions (WxDxH mm) | 795x305x540 | 795x305x540 | 853x349x600 | 920x380x699 | 967x421x800 |
| Outdoor Net/Gross Weight (kg) | 22/24 | 26/28 | 34/38 | 42/45 | 47/51 |
| Electrical Power | 1ph, 220–240V, 50Hz | ||||
| Breaker Size (A) | 16 | 16 | 16 | 20 | 20 |
| Interconnects (mm²) | 4G1.5 | 4G1.5 | 4G1.5 | 4G1.5 | 4G1.5 |
| Refrigerant R32 (kg) | 0.62 | 0.81 | 0.96 | 1.12 | 1.27 |
| Liquid Pipe Size (mm) | 6.35 (1/4) | 6.35 (1/4) | 6.35 (1/4) | 6.35 (1/4) | 6.35 (1/4) |
| Gas Pipe Size (mm) | 9.52 (3/8) | 9.52 (3/8) | 12.7 (1/2) | 12.7 (1/2) | 12.7 (1/2) |
| PreCharge (m) | 5 | 5 | 5 | 5 | 5 |
| Max Distance (LxH) | 15/10 | 15/10 | 20/15 | 25/15 | 30/20 |
| Additional Charge (g/m) | 15 | 15 | 25 | 25 | 25 |
| Set Temp. Range (°C) | 16–30 | 16–30 | 16–30 | 16–30 | 16–30 |
