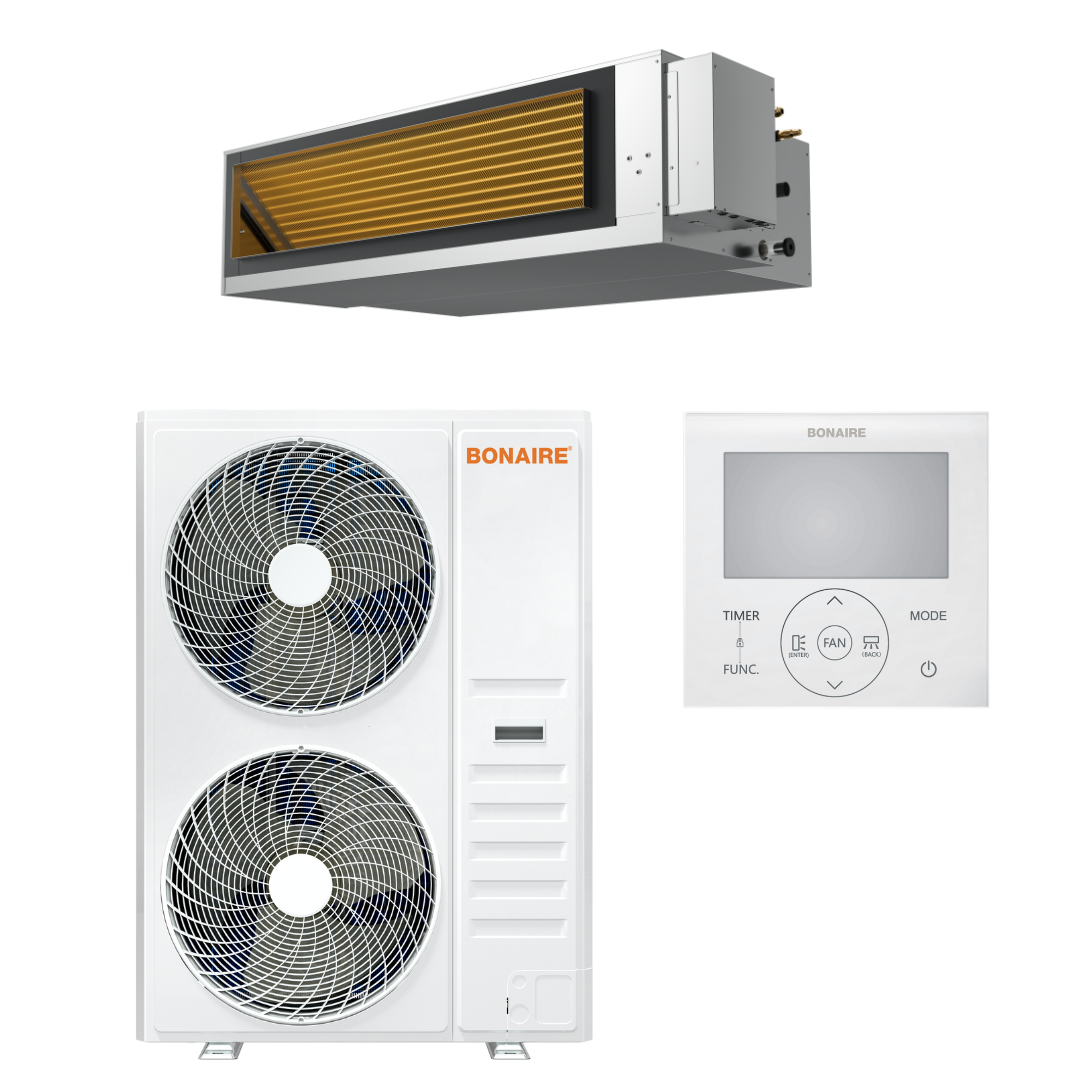

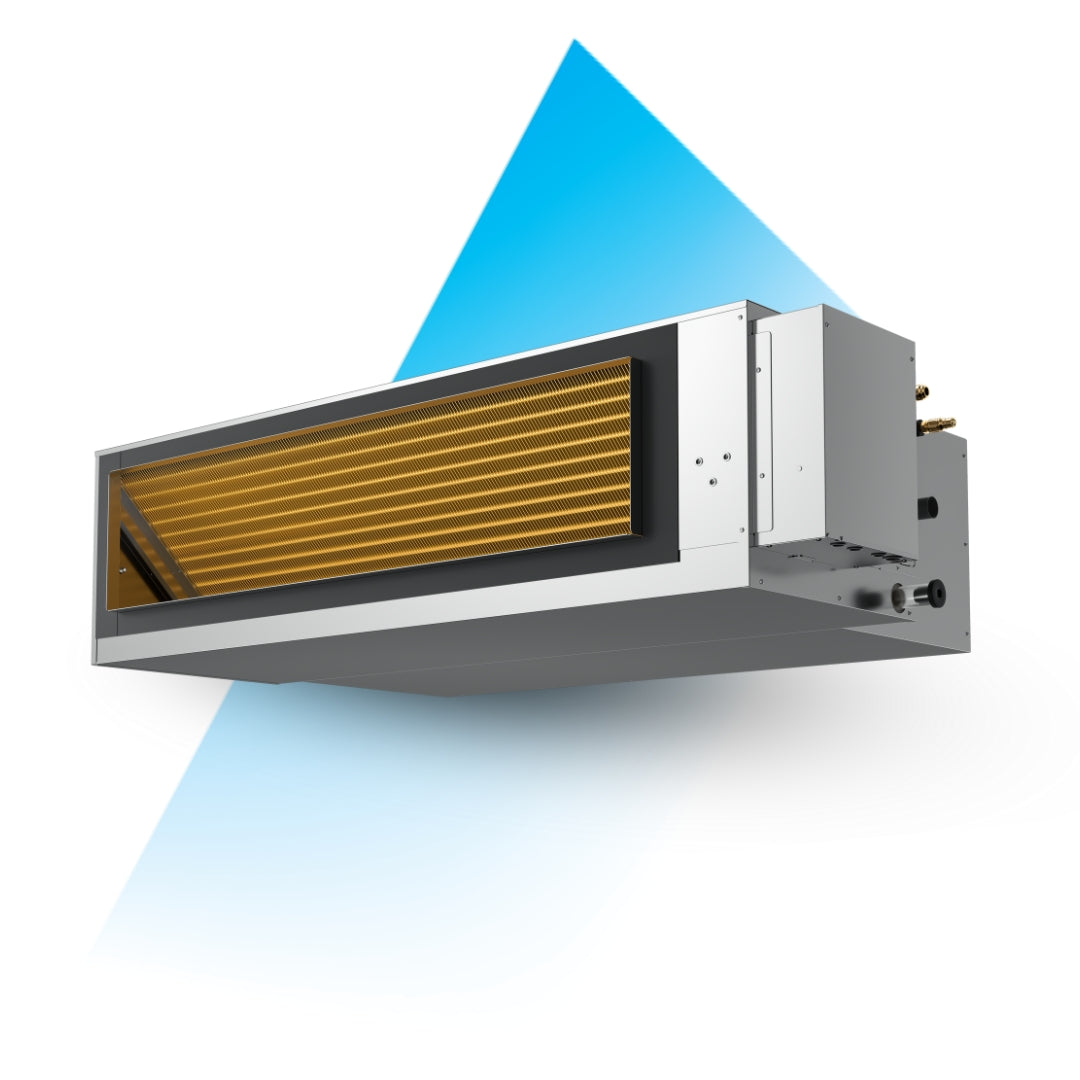

Ducted Reverse-Cycle High-Static Air Conditioner
Victorian Energy Upgrade (VEU) Approved - High VEECs

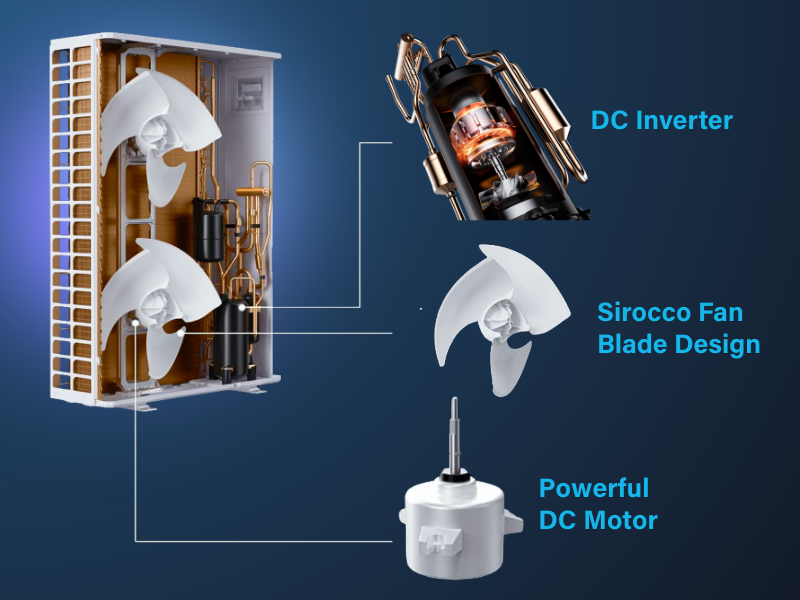

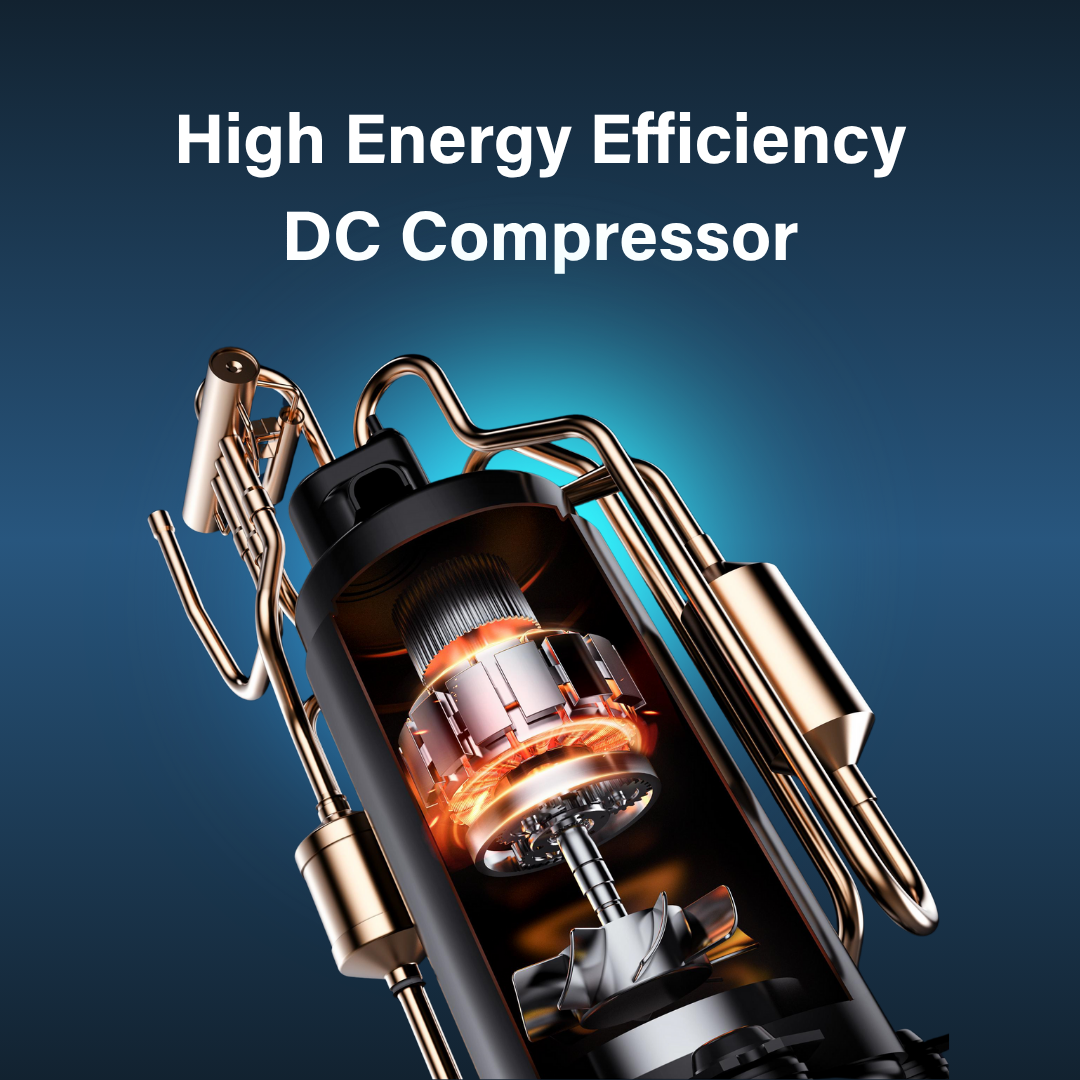

High-Efficiency Design

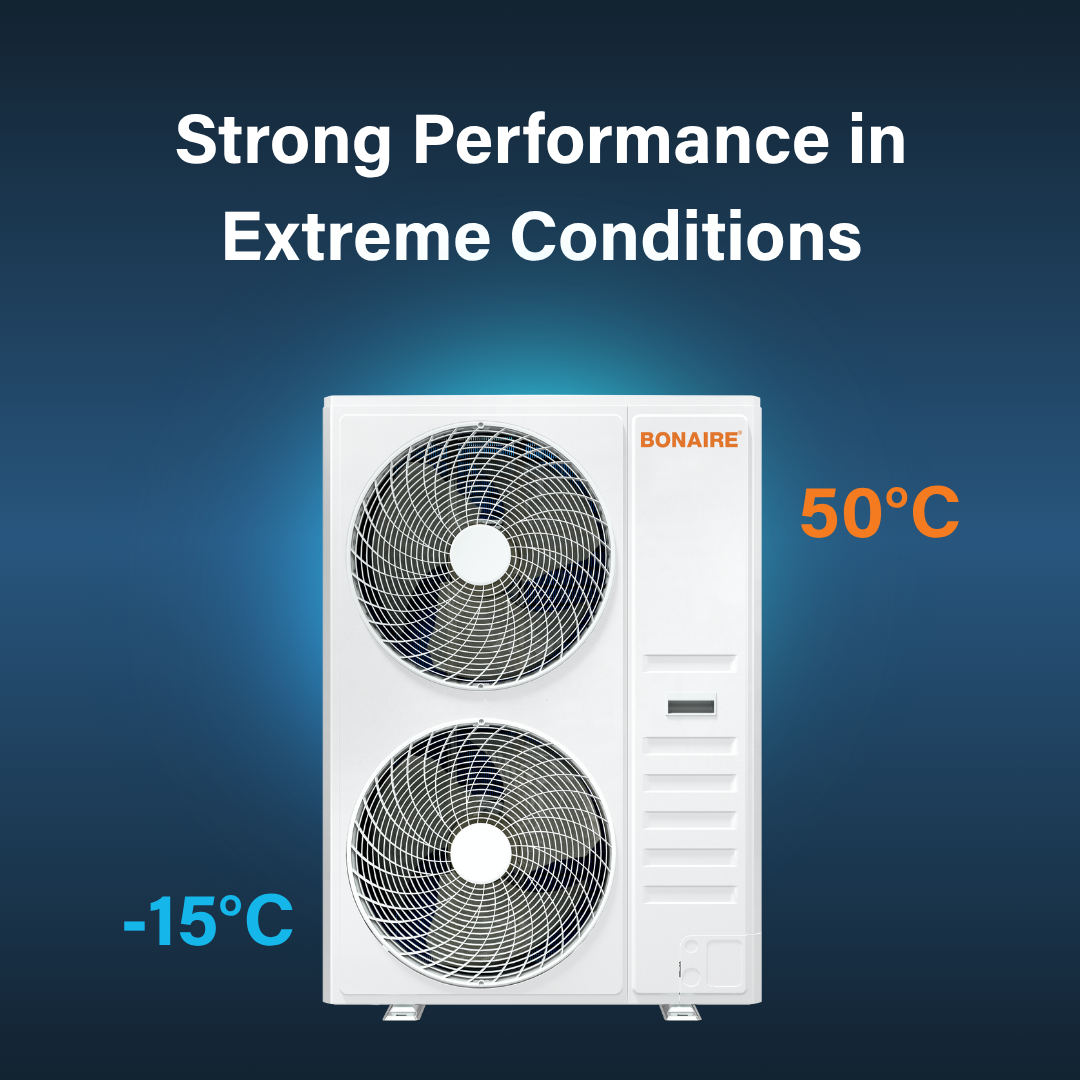

Strong Performance
Smart Controls

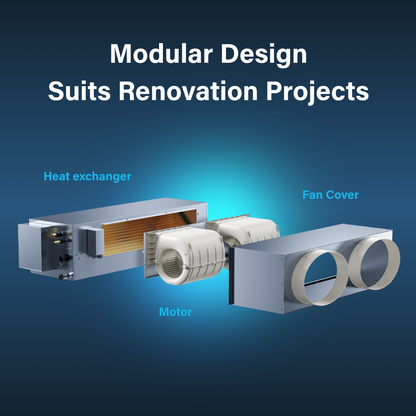

Modular Design
Kind on Your Pocket and Environment
Sleep Better with Quiet Night-Mode
Transform Your Home Into Your Oasis
Sail through everyday life in perfect comfort, breathing the cleanest air your home has ever known. Wake to crisp mornings without a shiver. Cruise through chaotic after-school arvos without breaking a sweat. Make every corner of your home feel just right for everyone with its powerful compressor.
Available through Bonaire's extensive network of dealers.
Find a Dealer
High-Efficiency Design

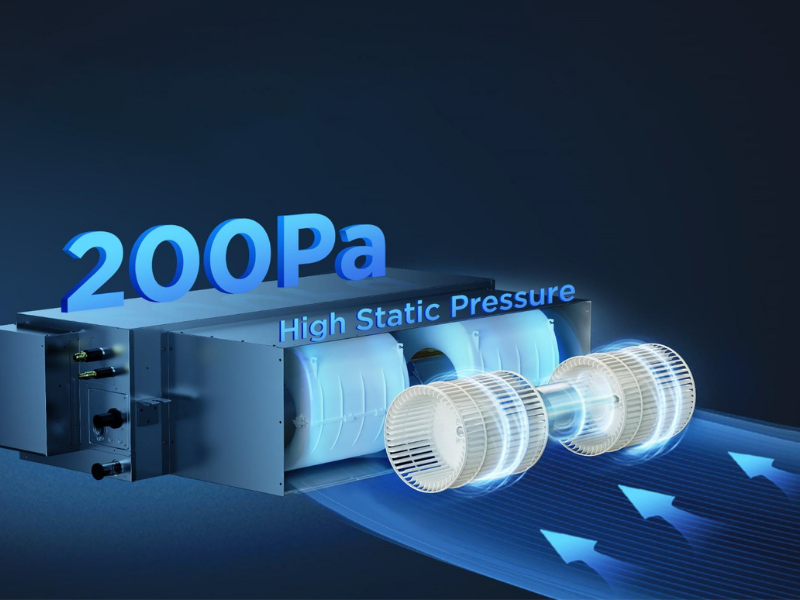

Strong Performance

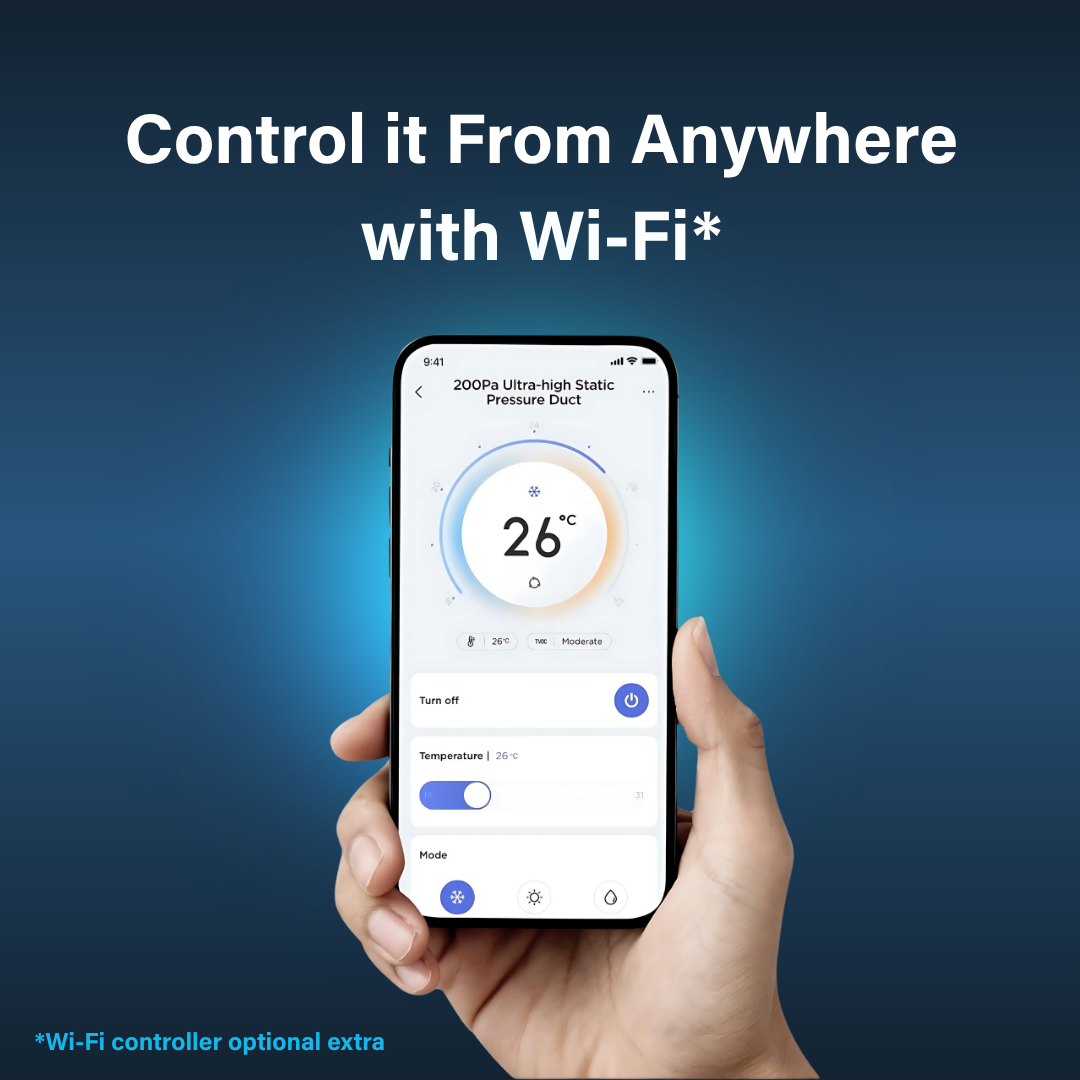

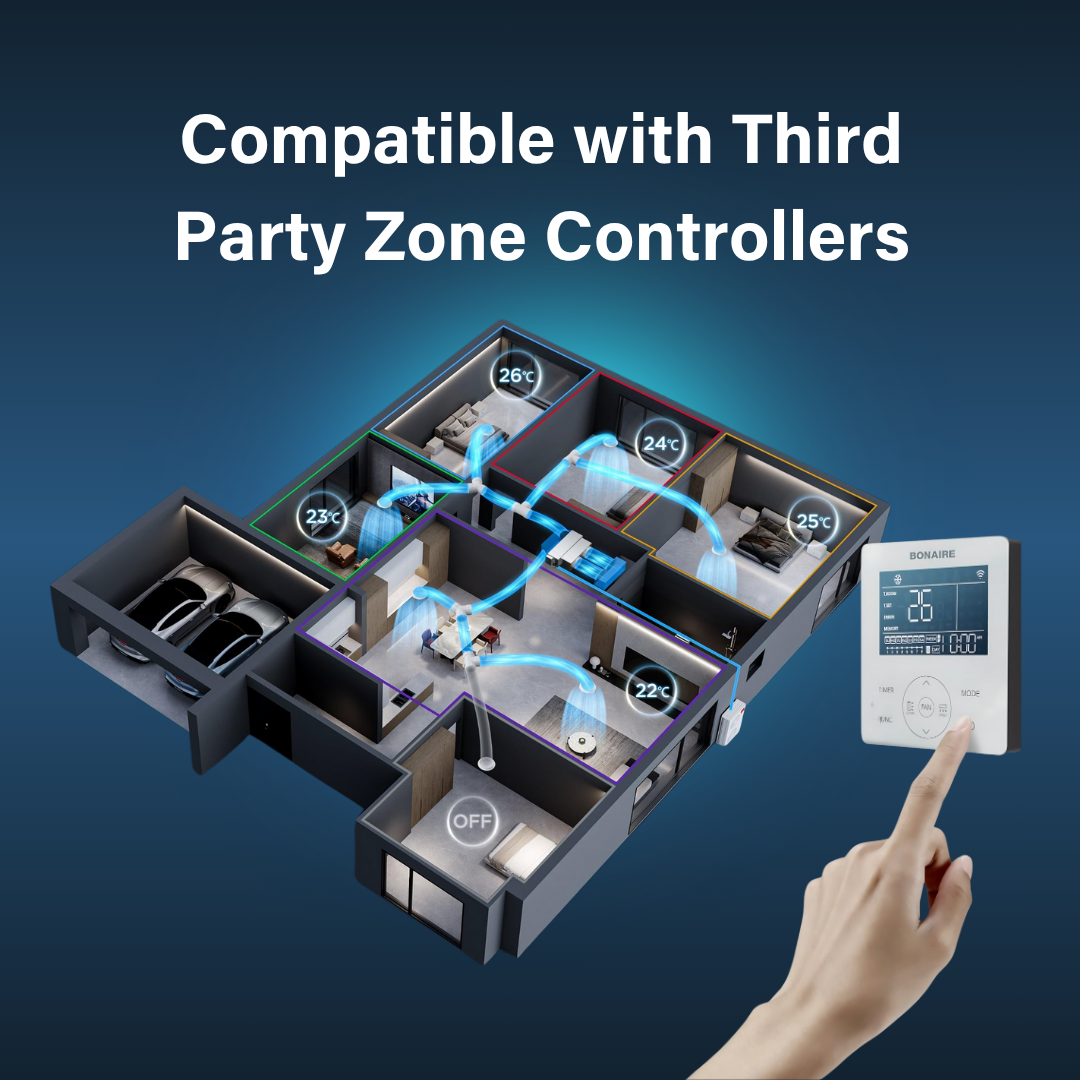

Smart Controls

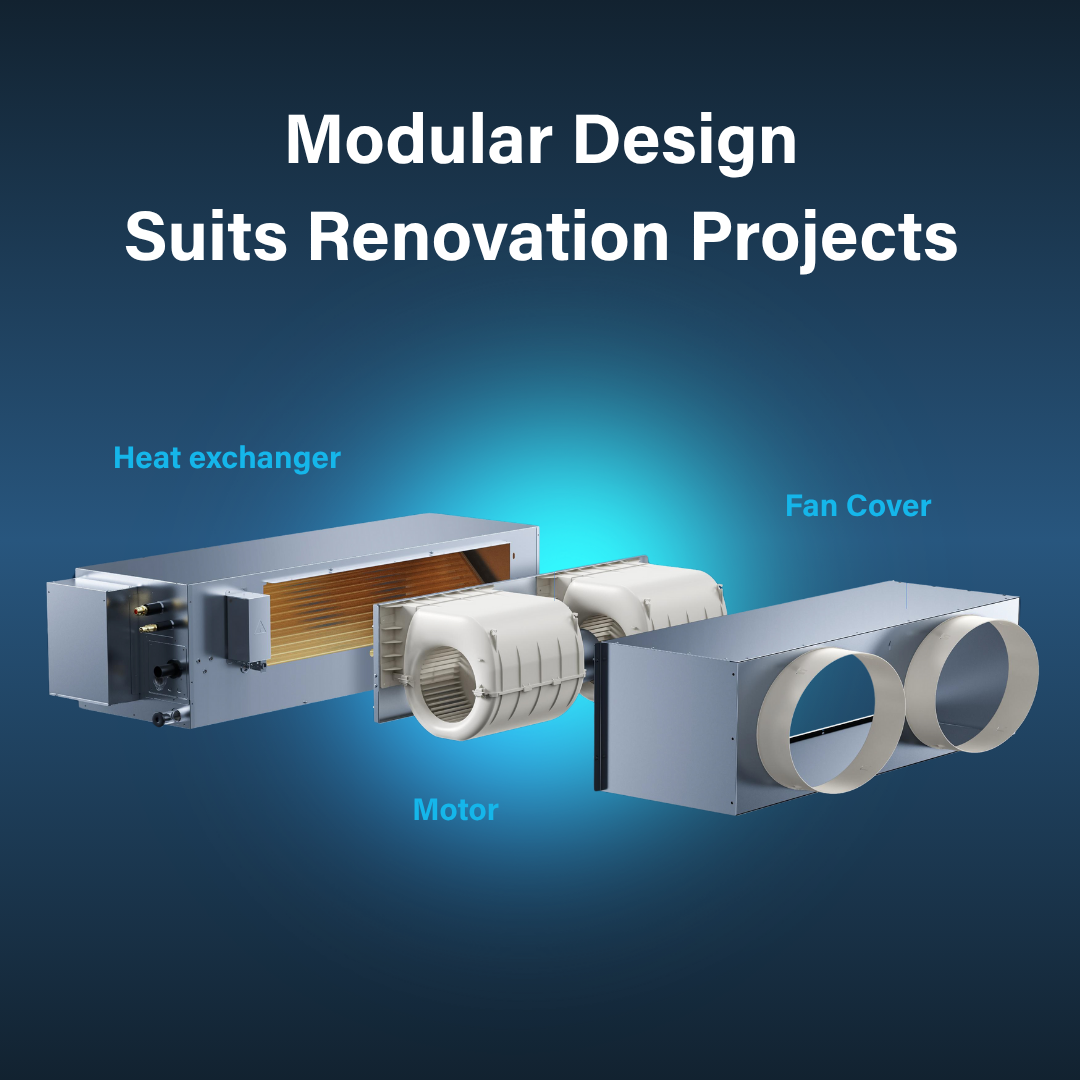

Modular Design
Kind on Your Pocket and Environment
Sleep Better with Quiet Night-Mode
Find a Bonaire Dealer Near You
Product Downloads
Product Brochure
Learn about your new Bonaire product, pour over technical details, compare it with other products - all from a handy brochure.
Owner's Manual
Get the most out of your new Bonaire product. Refer to the manual for specific actions and advanced features. Download your copy now!
Installation Manual
Detailed product dimensions and electrical specifications for dealers to to make the installation of your new Bonaire product a breeze.
Technical Details
| Product Model › Indoor Unit › Outdoor Unit › |
CTG100S1AS CTG100S1AI CTG100S1AE |
CTG125S1AS CTG125S1AI CTG125S1AE |
CTG140S1AS CTG140S1AI CTG140S1AE |
CTG160S1AS CTG160S1AI CTG160S1AE |
| Capacity | ||||
| Cooling (kW) | 10.5 (4.0~13.5) | 12.5 (4.0~13.5) | 14 (1.7~8.6) | 16 (4.1~17.8) |
| Heating (kW) | 12.5 (4.3~15.8) | 15 (4.3~15.8) | 16.5 (6.0~19.2) | 19 (6.0~19.8) |
| Power Input | ||||
| Cooling (W) | 2.48 | 3.75 | 3.85 | 4.86 |
| Heating (W) | 2.9 | 4.2 | 4.9 | 5.98 |
| Max Current (A) | 25.5 | 27 | 30 | 32 |
| Annualised Energy Efficiency Ratio | 4.19 | 4.12 | 3.93 | 3.83 |
| Annualised Coefficient of Performance | 4.27 | 4.36 | 3.93 | 3.83 |
| TCSPF (Residential) Hot / Avg. / Cold | ||||
| 5.55 / 5.08 / 5.18 | 4.71 / 4.37 / 4.56 | 5.23 / 4.85 / 5.05 | 4.77 / 4.47 / 4.67 | |
| HSPF (Residential) Hot / Avg. / Cold | ||||
| 4.85 / 4.44 / 3.91 | 4.63 / 4.10 / 3.91 | 4.63 / 4.03 / 3.6 | 4.49 / 3.94 / 3.45 | |
| Indoor Unit | ||||
| Power V/Ph/Hz | 1 phase, 220-240 V, 50 Hz | |||
| Airflow (L/s) | 785 / 650 / 460 | 785 / 650 / 460 | 1120 / 950 / 780 | 1120 / 950 / 780 |
| Sound Pressure Level (dBA) | 47 | 47 | 48 | 48 |

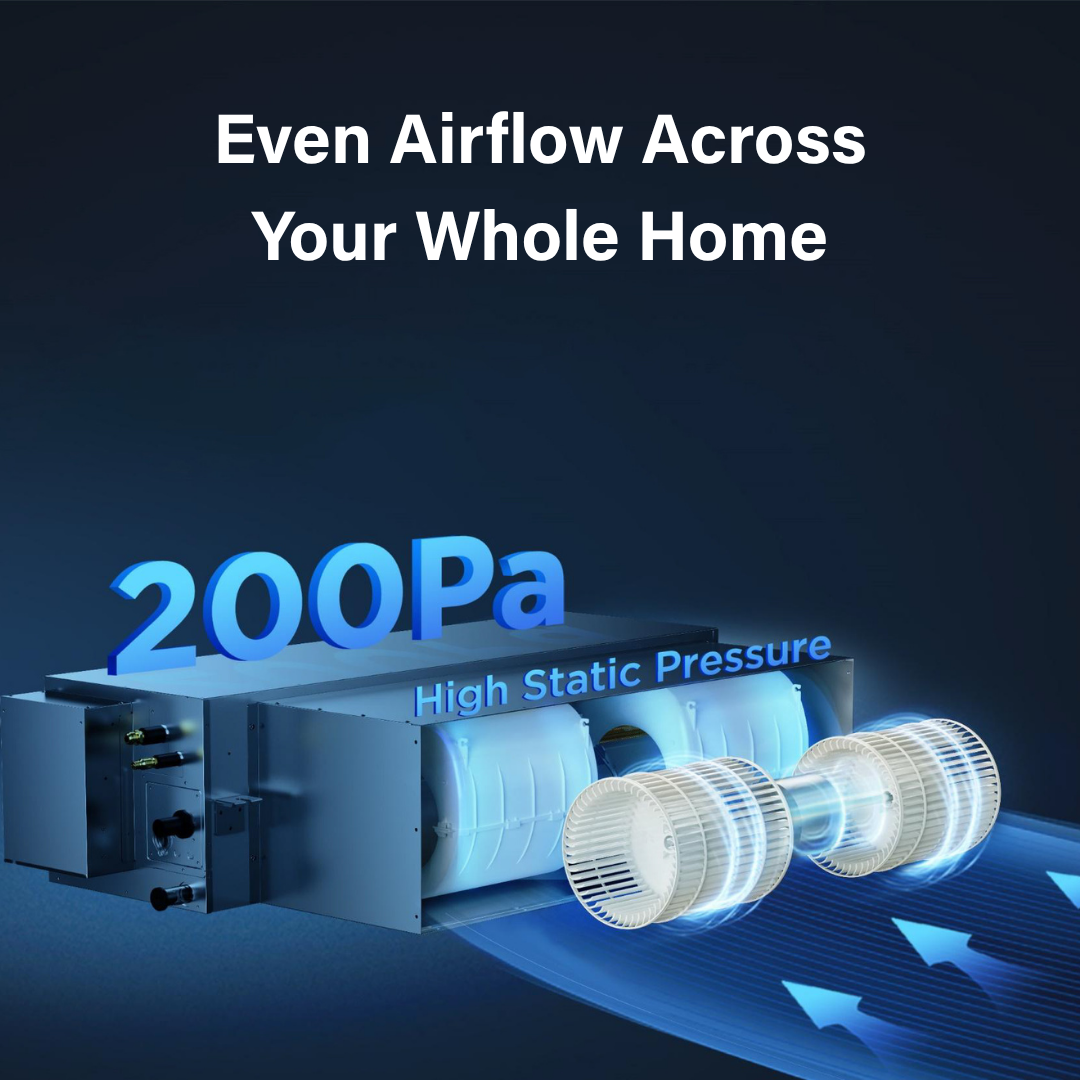

| External Static Pressure (Pa) | 37 (0~200) | 50 (0~200) | 50 (0~200) | 50 (0~200) |
| Dimensions WxDxH (mm) | 1510x945x380 | 1510x945x380 | 1510x945x380 | 1510x945x380 |
| Supply Air Flange WxH (mm) | 1152x245 | |||
| Return Air Opening | 2x400 (Oval) | |||
| Net/Gross Weight (kg) | 66 / 77 | |||
| Outdoor Unit | ||||
| Power V/Ph/Hz | 1 phase, 220-240 V, 50 Hz | |||
| Dimensions WxDxH (mm) | 1010x858x436 | 1010x858x436 | 1330 x 950 x 340 | 1330 x 950 x 340 |
| Sound Pressure Level H/C dB(A) | 57/58 | 57/58 | 58/59 | 58/59 |
| Night quiet mode dB(A) | 54 | 54 | 55 | 55 |
| Sound Power Level dB(A) | 70 | 70 | 74 | 74 |
| Net/Gross Weight (kg) | 73/85 | 73/85 | 101/107 | 101/107 |
| Piping Connection | ||||
| Liquid Pipe Size (mm) | 9.52 (3/8) | |||
| Gas Pipe Size (mm) | 15.88 (5/8) | |||
| Max Distance LxH (m) | 50/30 | 50/30 | 75/30 | 75/30 |
| PreCharge (m) | 20 | |||
| Charge Adjustment (g/m) | 30 | |||
| Refrigerant | R32 | |||
| Ambient Temp Range | ||||
| Cooling °C | 16~50 | |||
| Heating °C | -15~24 | |||
