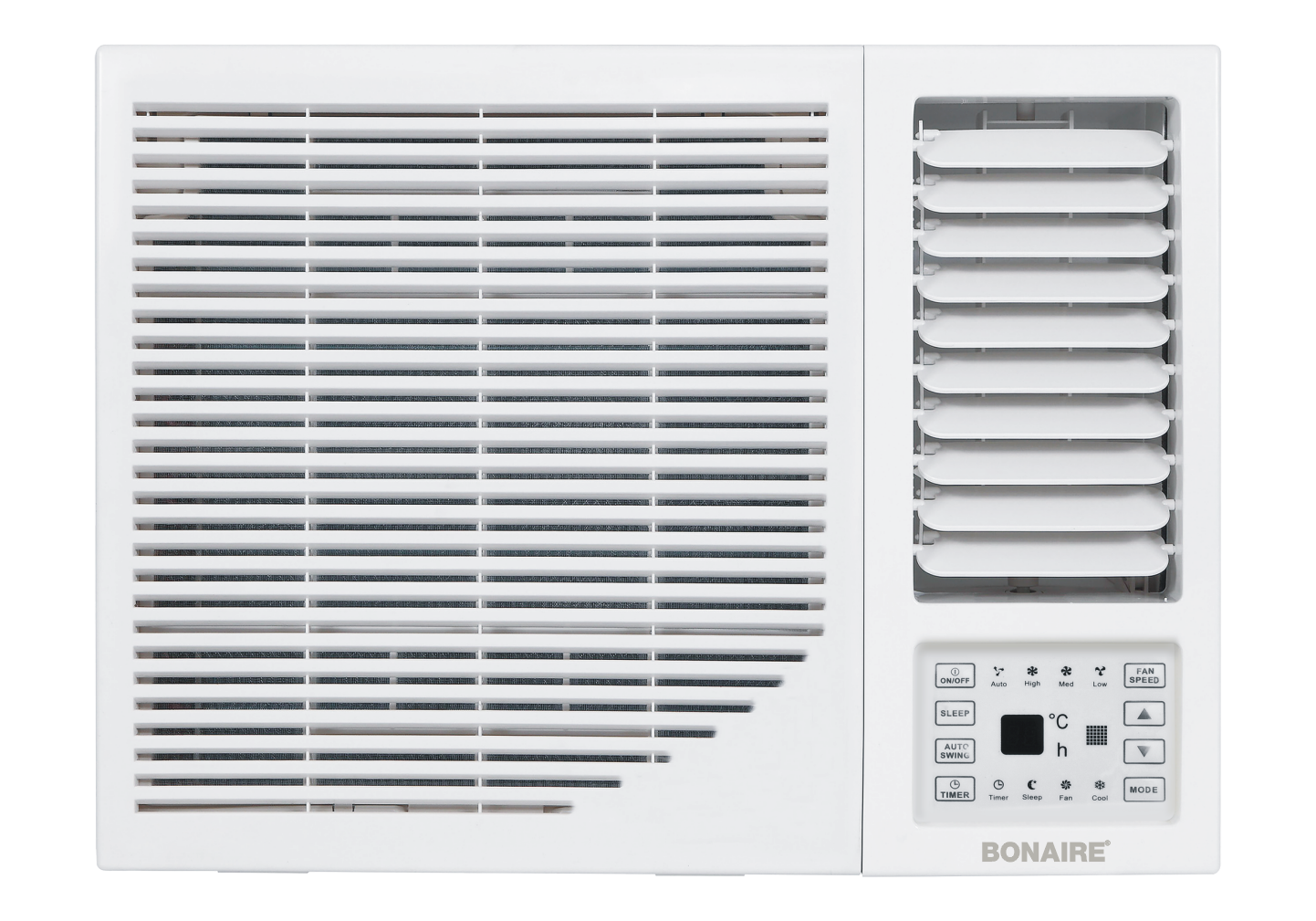

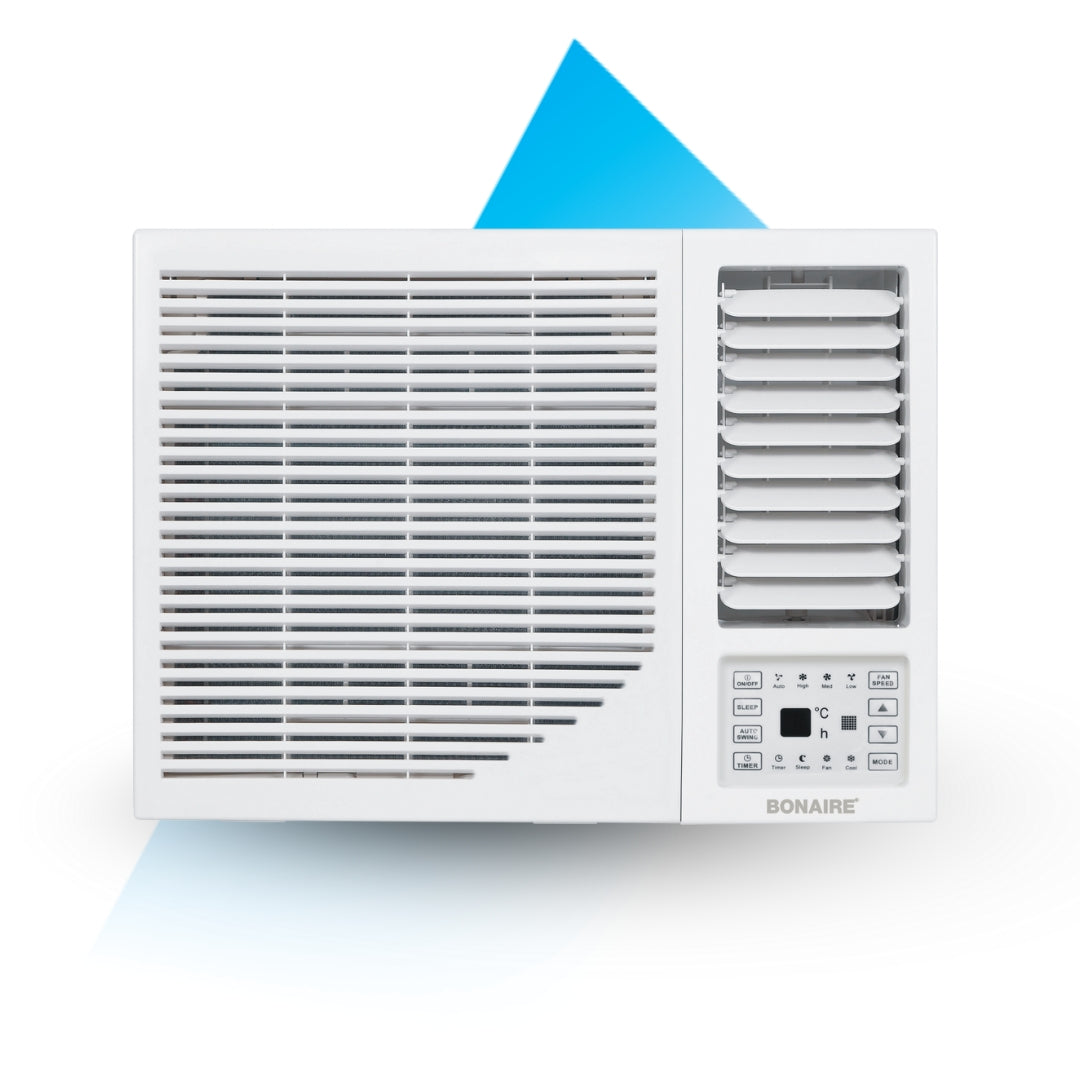

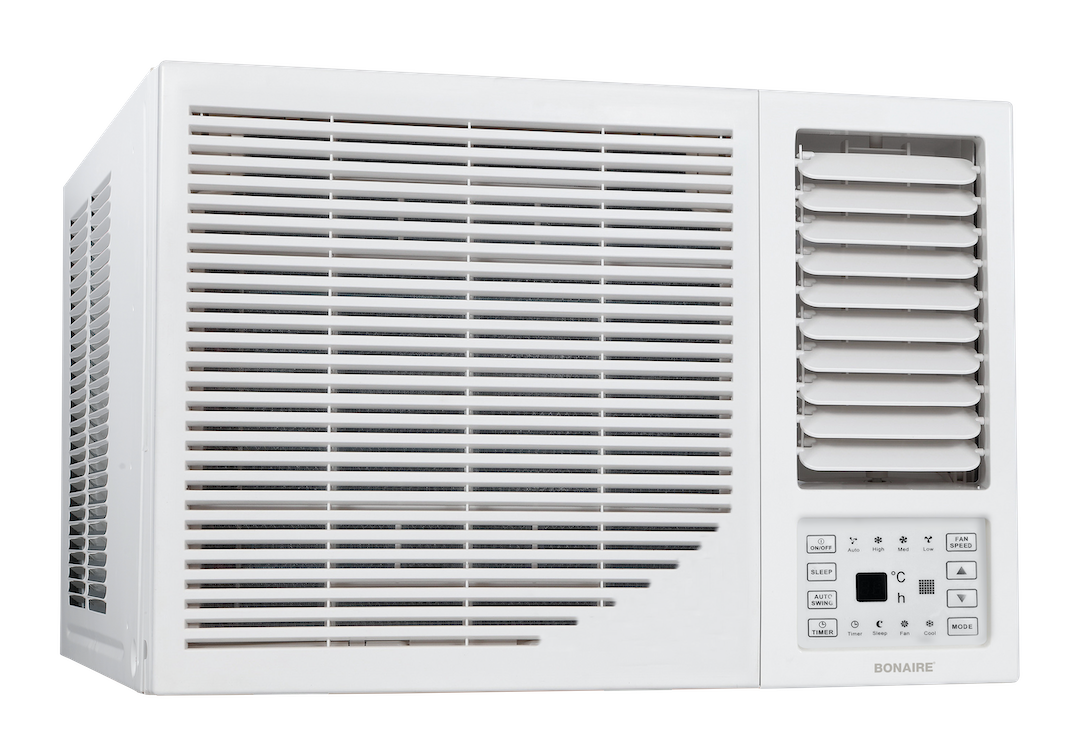

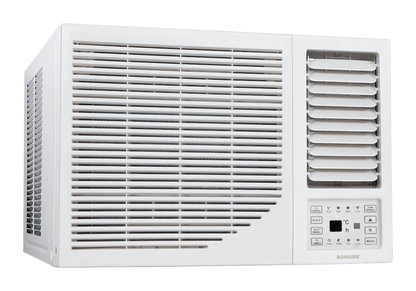

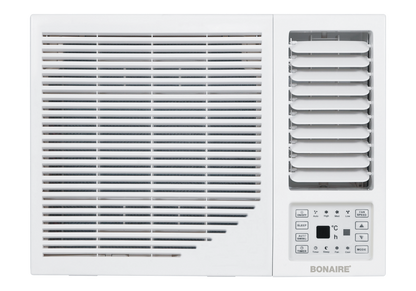

Window Wall Air Conditioner 1.7kW to 4.2kW
Huge Comfort Without the Big Renovation
When the weather turns sour, turn on the Bonaire Window Wall Air Conditioner to make your room comfy, fast!
It installs straight into a window or wall opening, no bulky outdoor unit, no complicated building works. Just set it up and enjoy.
It uses the R32 refrigerant for better energy efficiency and a smaller environmental footprint, so you stay comfortable without guilt.
Perfect for renters, home offices, spare rooms, or anyone who wants quick, reliable comfort that just works.
Choose the right size for your space:
- 1.7kW Cooling Only: for 8-11 m² rooms
- 2.7kW Reverse Cycle: warms and cools 10-18 m² rooms
- 4.2kW Reverse Cycle: handles 20-30 m² rooms with ease
Available through Bonaire's extensive network of dealers.
Find a DealerFind a Bonaire Dealer Near You
Product Downloads
Product Brochure
Learn about your new Bonaire product, pour over technical details, compare it with other products - all from a handy brochure.
Owner's Manual
Get the most out of your new Bonaire product. Refer to the manual for specific actions and advanced features. Download your copy now!
Installation Manual
Detailed product dimensions and electrical specifications for dealers to to make the installation of your new Bonaire product a breeze.
Technical Details
| Model number | CRC6000017 1.7kW (Cooling Only_ |
CRC6000027 2.7kW (Heating & Cooling) |
CRC6000042 4.2kW (Heating & Cooling) |
| Power supply | Ph-V-Hz 220-240V~ 50Hz, 1Ph | ||
| Cooling Capacity | 1700 | 2700 | 4200 |
| Heating Capacity | / | 2400 | 3600 |
| AEER for cooling | 3.2356 | 3.2698 | 3.2665 |
| ACOP for heating | / | 3.4495 | 3.3464 |
| Energy star for cooling | |||
| cold | 1.5 | 1.5 | 1.5 |
| mixed | 1.5 | 1.5 | 1.5 |
| hot&humid | 2 | 2 | 2 |
| Energy star for heating | |||
| cold | / | 1.0 | 1.0 |
| mixed | / | 1.0 | 1.0 |
| hot&humid | / | 1.0 | 1.0 |
| Moisture removal (Liters/h) | 0.6 | 1.0 | 1.7 |
| Cooling rated power input (W) | 520 | 820 | 1280 |
| Heating rated power input (W) | / | 690 | 1070 |
| Cooling rated current (A) | 2.30 | 3.60 | 5.7 |
| Heating rated current (A) | / | 3.00 | 4.9 |
| Cooling Max. input consumption (W) | 620 | 1000 | 1540 |
| Heating Max. input consumption (W) | / | 980 | 1470 |
| Cooling Max. current (A) | 2.90 | 4.70 | 7.3 |
| Heating Max. current (A) | / | 4.60 | 7.3 |
| Indoor Air Volume (m³/h) | 420 | 430 | 700 |
| Max. Pressure | |||
| Discharge | 4.5 | 4.3 | 4.3 |
| Suction | 1.5 | 1.2 | 1.2 |
| Inside sound power level (dB(A)) | 57 | 53 | 58 |
| Outside sound power level (dB(A)) | 65 | 63 | 64 |
| Refrigerant type | R32/235g | R32/580g | R32/660g |
| Operation temp (°C) | 16~31 | ||
| Ambient temp (cooling/heating) (°C) | 18~43 | 18~43/-7~27 | 18~43/-7~27 |
| Application area (m²) | 8~11 | 10~18 | 20~30 |
| Dimension (W*H*D) (mm) | 470×355×535 | 600×380×560 | 660×430×680 |
| Packing (W*H*D) (mm) | 553×425×566 | 687×420×620 | 740×468×795 |
| Net/Gross weight (Kg) | 25/28 | 35/37.5 | 50/54 |
