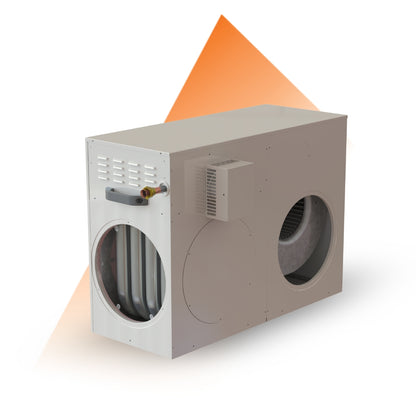

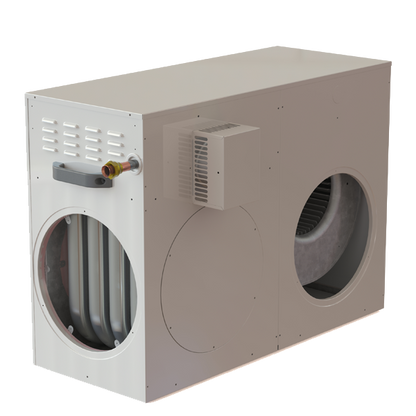

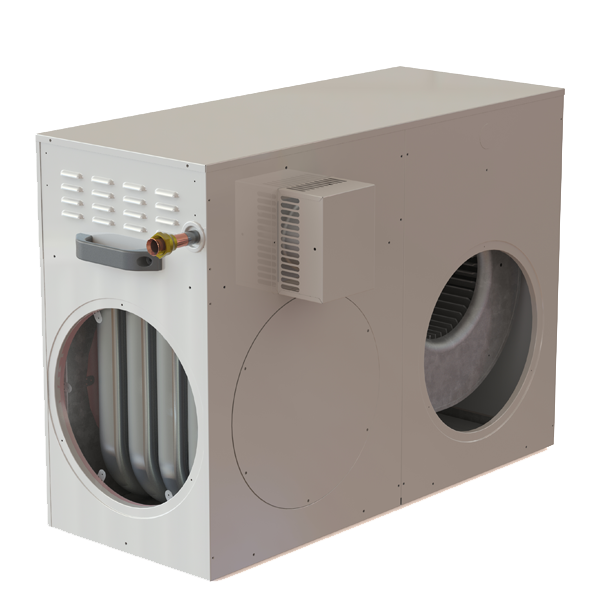

MB5 Series Gas Heater
The MB5 series is a five-star efficient heat exchanger. With this advanced heater, it won’t feel like winter. It has auto adjustable features with modulation and energy-saving features. The MB5 series offers the choice of Navigator Wall Mounted Controller or Navigator Radio Frequency (RF) Remote Controller. You can also operate your MB5 heater with the optional Bonaire My Climate® Wi-Fi® control.
Available through Bonaire's extensive network of dealers.
Find a DealerTechnical Details

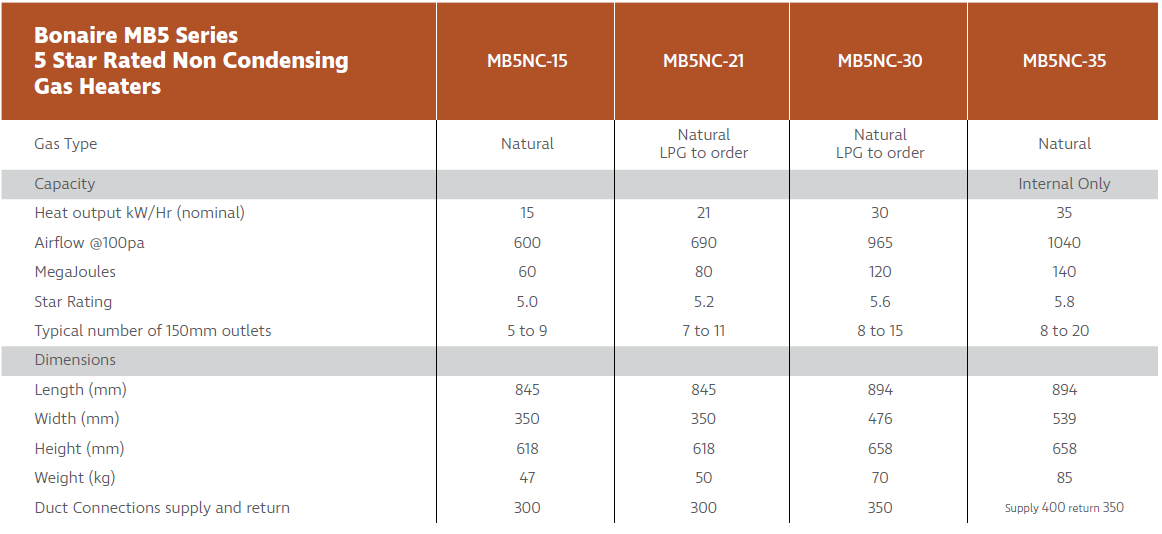

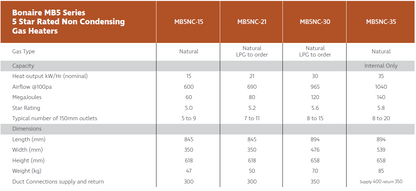

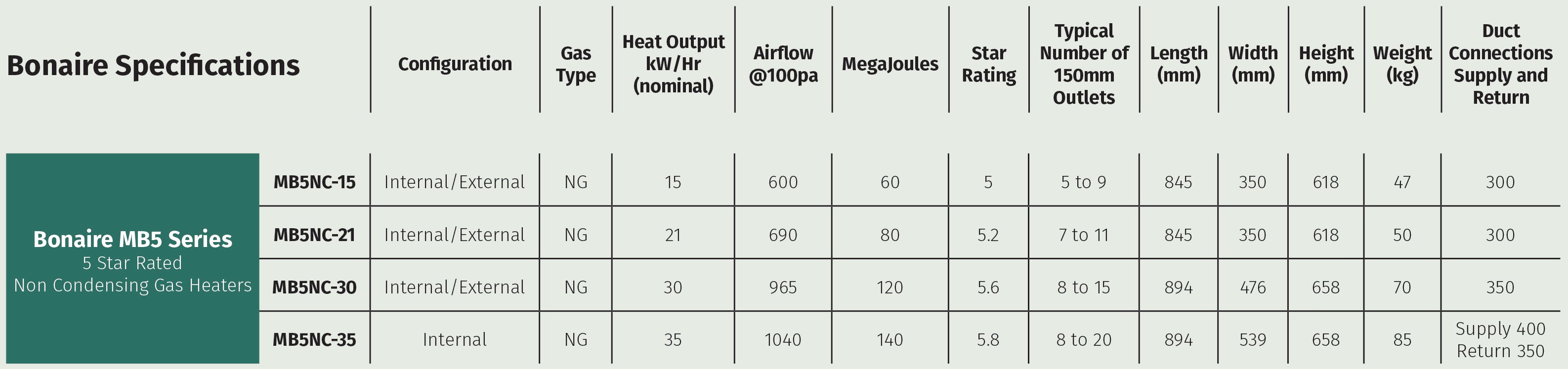

| Product Model | MB5NC-15 | MB5NC-21 | MB5NC-30 | MB5NC-35 |
| Gas Type | ||||
| Gas Type | Natural | Natural LPG to order |
Natural LPG to order |
Natural Internal Only |
| Capacity | ||||
| Heat output kW/Hr (nominal) | 15 | 21 | 30 | 35 |
| Airflow @100pa | 600 | 690 | 965 | 1040 |
| MegaJoules | 60 | 80 | 120 | 140 |
| Star Rating | 5.0 | 5.2 | 5.6 | 5.8 |
| Typical number of 150mm outlets | 5 to 9 | 7 to 11 | 8 to 15 | 8 to 20 |
| Dimensions | ||||
| Length (mm) | 845 | 845 | 894 | 894 |
| Width (mm) | 350 | 350 | 476 | 539 |
| Height (mm) | 618 | 618 | 658 | 658 |
| Weight (kg) | 47 | 50 | 70 | 85 |
| Duct Connections supply and return | 300 | 300 | 350 | Supply 400 Return 350 |
