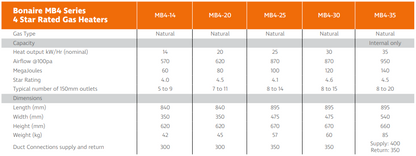

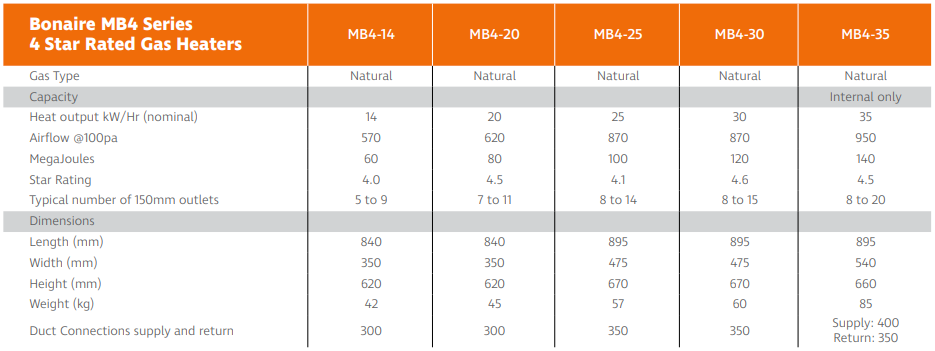

Technical Details

Product Model MB4-14 MB4-20 MB4-25 MB4-30 MB4-35
Gas Type
Gas Type Natural Natural Natural Natural Natural
Internal only
Capacity
Heat output kW/Hr (nominal) 14 20 25 30 35
Airflow @100pa 570 620 870 870 950
MegaJoules 60 80 100 120 140
Star Rating 4.0 4.5 4.1 4.6 4.5
Typical number of 150mm outlets 5 to 9 7 to 11 8 to 14 8 to 15 8 to 20
Dimensions
Length (mm) 840 840 895 895 895
Width (mm) 350 350 475 475 540
Height (mm) 620 620 670 670 660
Weight (kg) 42 50 57 60 85
Duct Connections supply and return 300 300 350 350 Supply: 400
Return: 350
