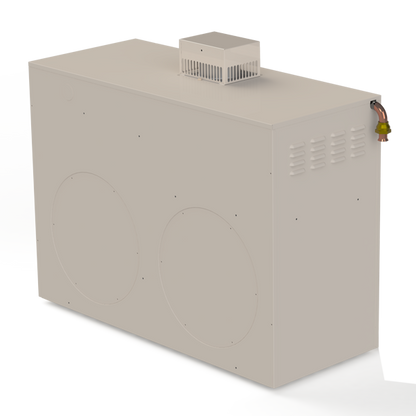

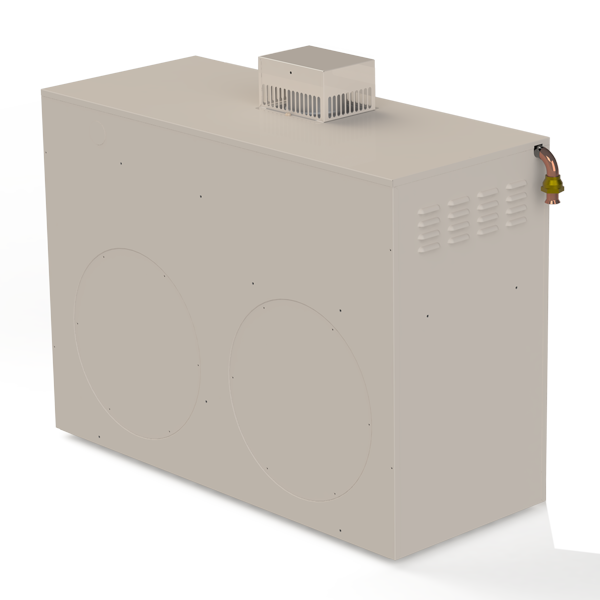

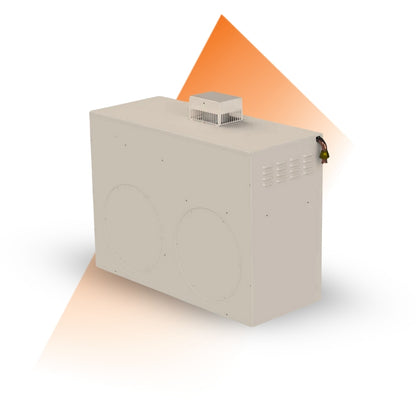

MB3 Series Gas Heater
When installed, the Bonaire MB3 Series will deliver effective heating to your entire home. Buy gas heaters that are constructed with Bonaire’s high tech multi-tube heat exchanger, electronic ignition and performance-driven diagnostic control boards. You can preset up to four independent heating periods daily with our Slimline Digital Thermostat or with the Navigator wall-mounted digital controller that we will supply along with the heater. Buy Gas Heater Today!
Available through Bonaire's extensive network of dealers.
Find a DealerTechnical Details

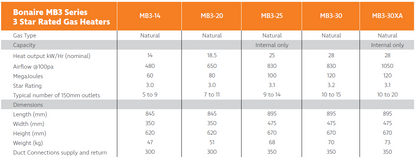

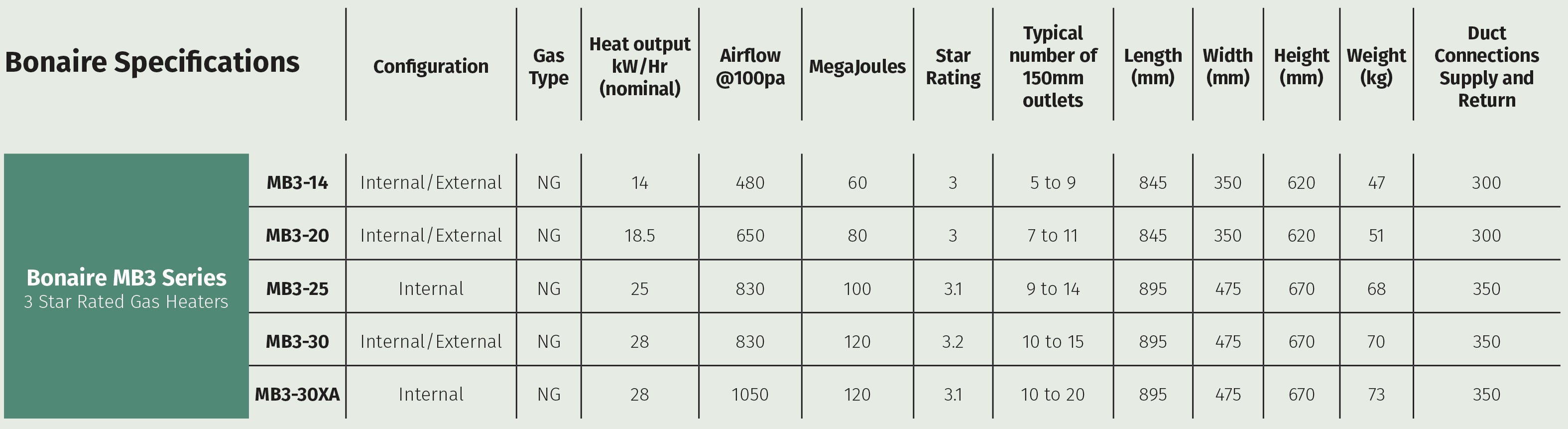

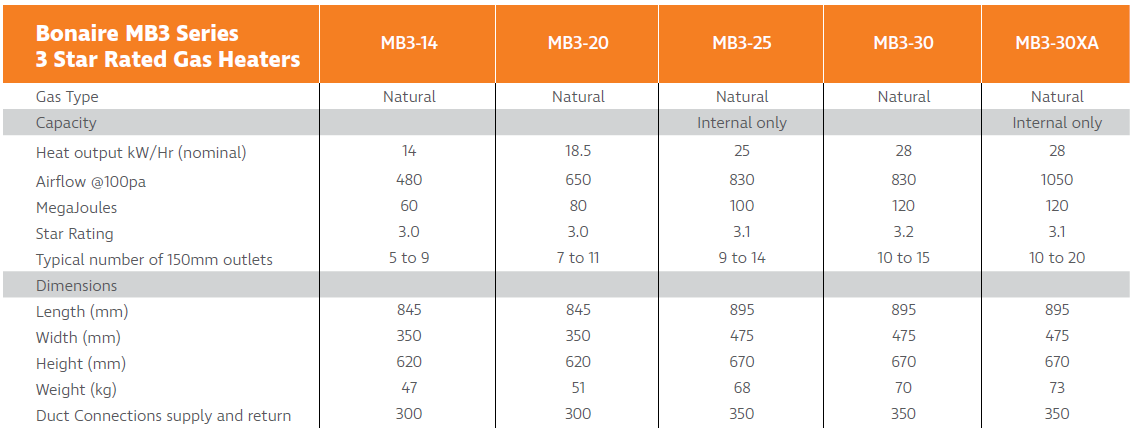

| Product Model | MB3-14 | MB3-20 | MB3-25 | MB3-30 | MB3-30XA |
| Gas Type | |||||
| Gas Type | Natural | Natural | Natural Internal only |
Natural | Natural |
| Capacity | |||||
| Heat output kW/Hr (nominal) | 14 | 18.5 | 25 | 28 | 28 |
| Airflow @100pa | 480 | 650 | 830 | 830 | 1050 |
| MegaJoules | 60 | 80 | 100 | 120 | 120 |
| Star Rating | 3.0 | 3.0 | 3.1 | 3.2 | 3.1 |
| Typical number of 150mm outlets | 5 to 9 | 7 to 11 | 9 to 14 | 10 to 15 | 10 to 15 |
| Dimensions | |||||
| Length (mm) | 845 | 845 | 895 | 895 | 895 |
| Width (mm) | 350 | 350 | 475 | 475 | 475 |
| Height (mm) | 620 | 620 | 670 | 670 | 670 |
| Weight (kg) | 47 | 51 | 60 | 70 | 73 |
| Duct Connections supply and return | 300 | 300 | 350 | 350 | 350 |
